Master Engine Overhaul Kit 13000-HR3-A40 for Honda TRX420 FM FE TM TE Manual ES
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
Key Features
-
Complete Overhaul Solution: Includes all essential internal core components to fully rebuild and refresh your engine, restoring factory-spec power and performance.
-
Heavy-Duty Construction: Features a wear-resistant, high-strength crankshaft and a precision-engineered piston assembly to ensure stable compression, smooth power delivery, and minimized vibration.
-
Premium Seals & Hardware: The included comprehensive overhaul gasket kit and bearings provide a reliable, leak-free seal for long-term trail durability.
Fitment & Application
Specifically designed for 2012–2024 Honda Rancher TRX420 models equipped with a Manual or Electric Shift (ES) Transmission.
Compatible Sub-Models:
-
TRX420FE (FourTrax Rancher 4x4 ES)
-
TRX420FM (FourTrax Rancher 4x4 Manual)
-
TRX420TM (FourTrax Rancher 2x4 Manual)
-
TRX420TE (FourTrax Rancher 2x4 ES)
⚠️ STRICT FITMENT EXCLUSIONS:
-
This kit is NOT compatible with Automatic Transmission / Dual-Clutch Transmission (DCT) models, including TRX420FA or TRX420FPA variants.

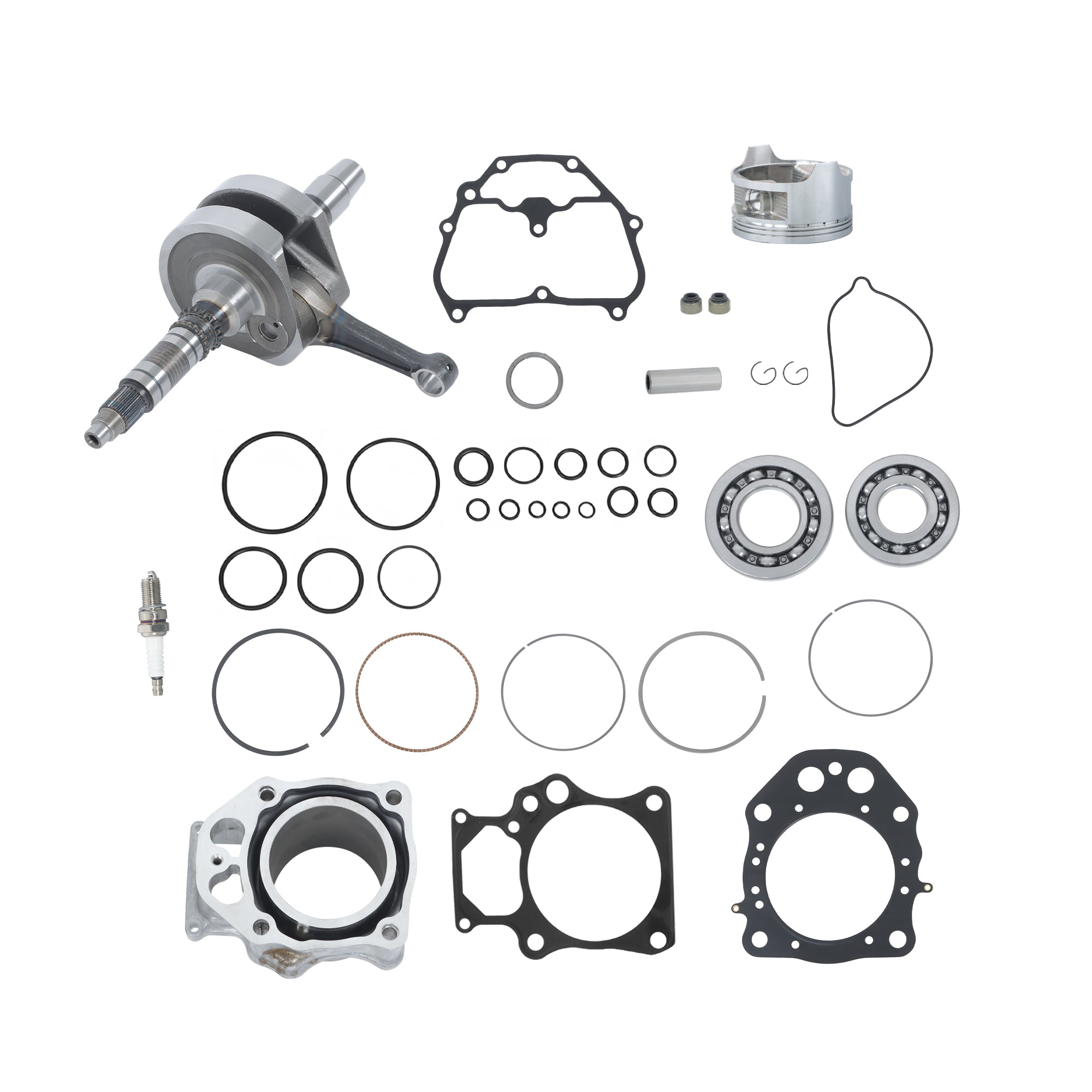

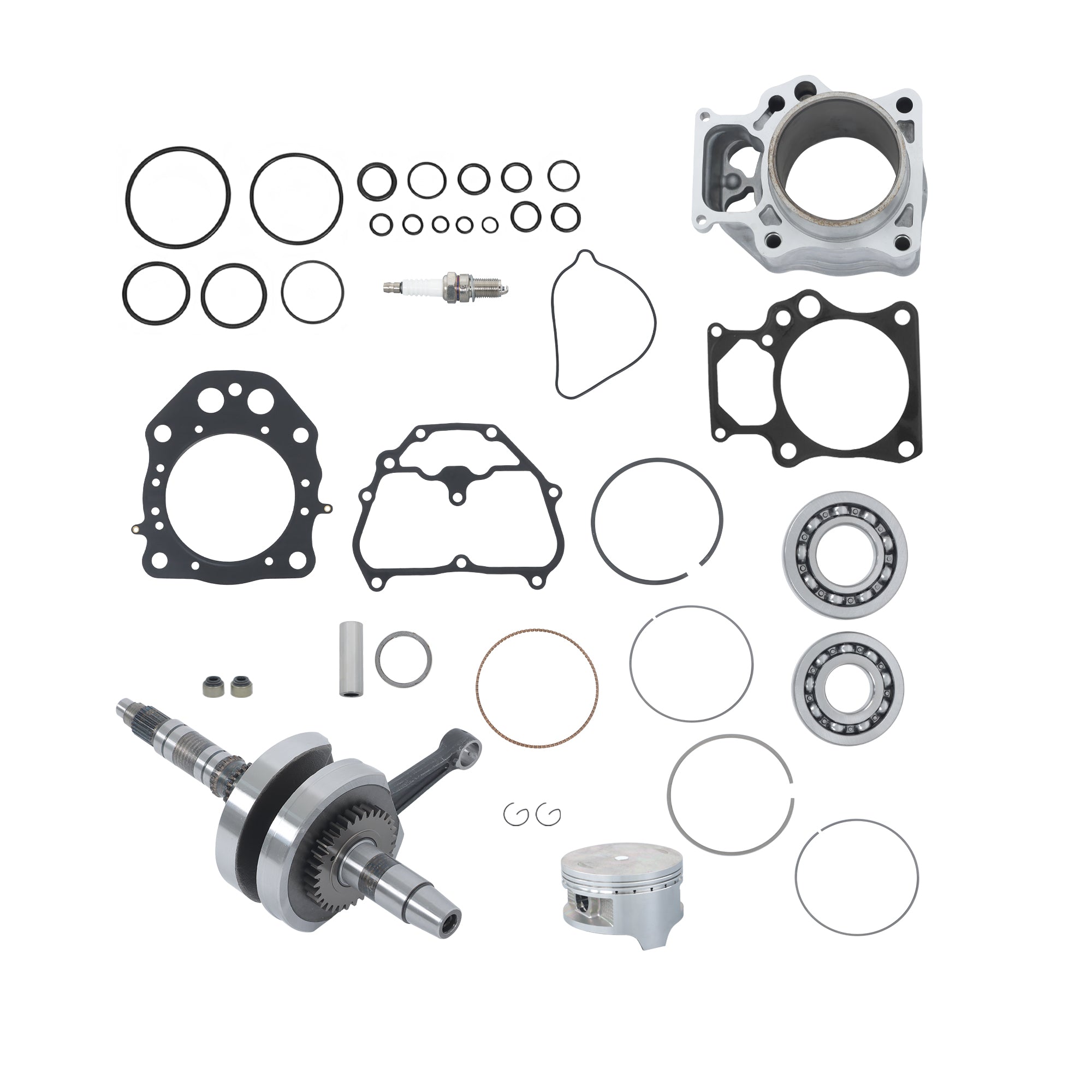

Package Includes
-

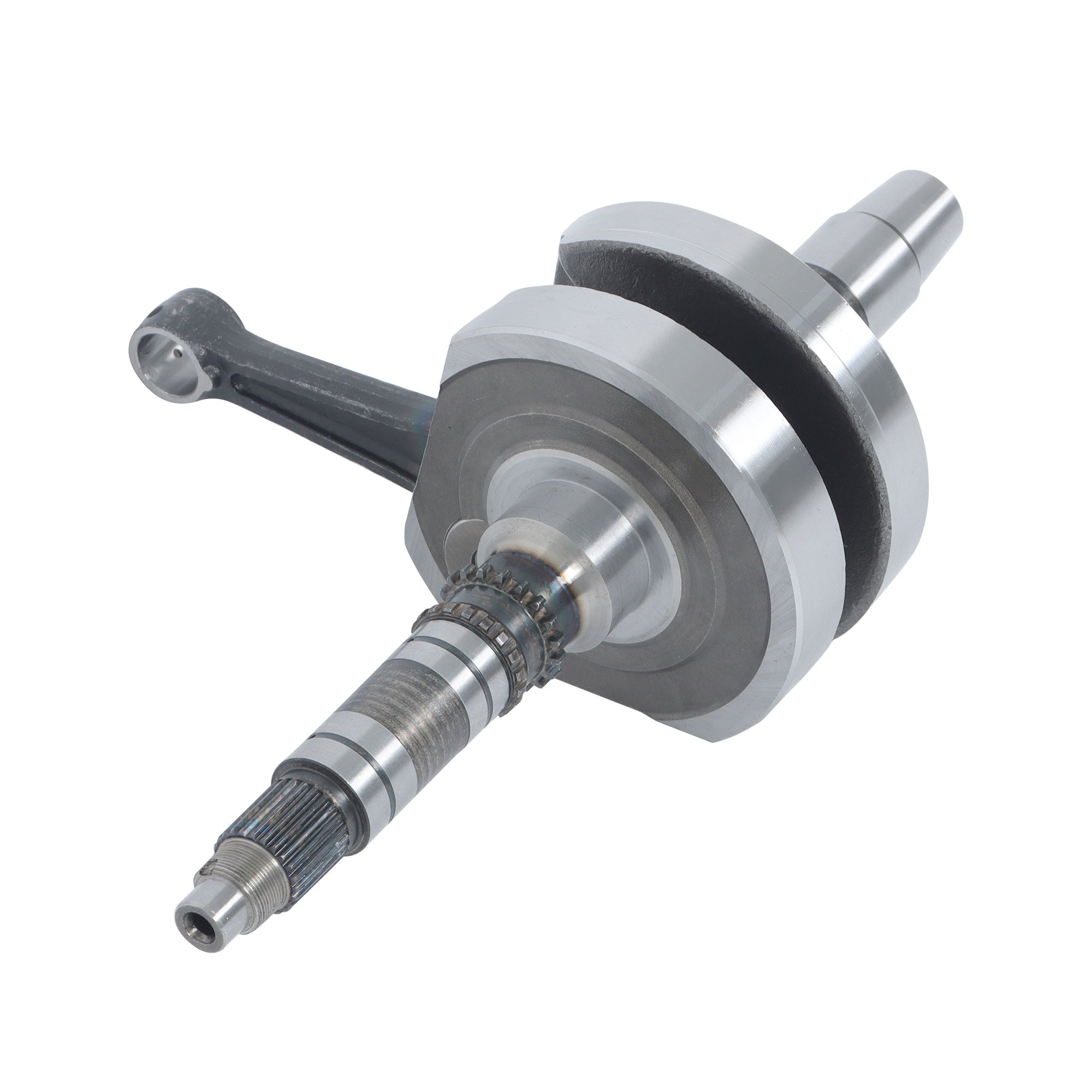

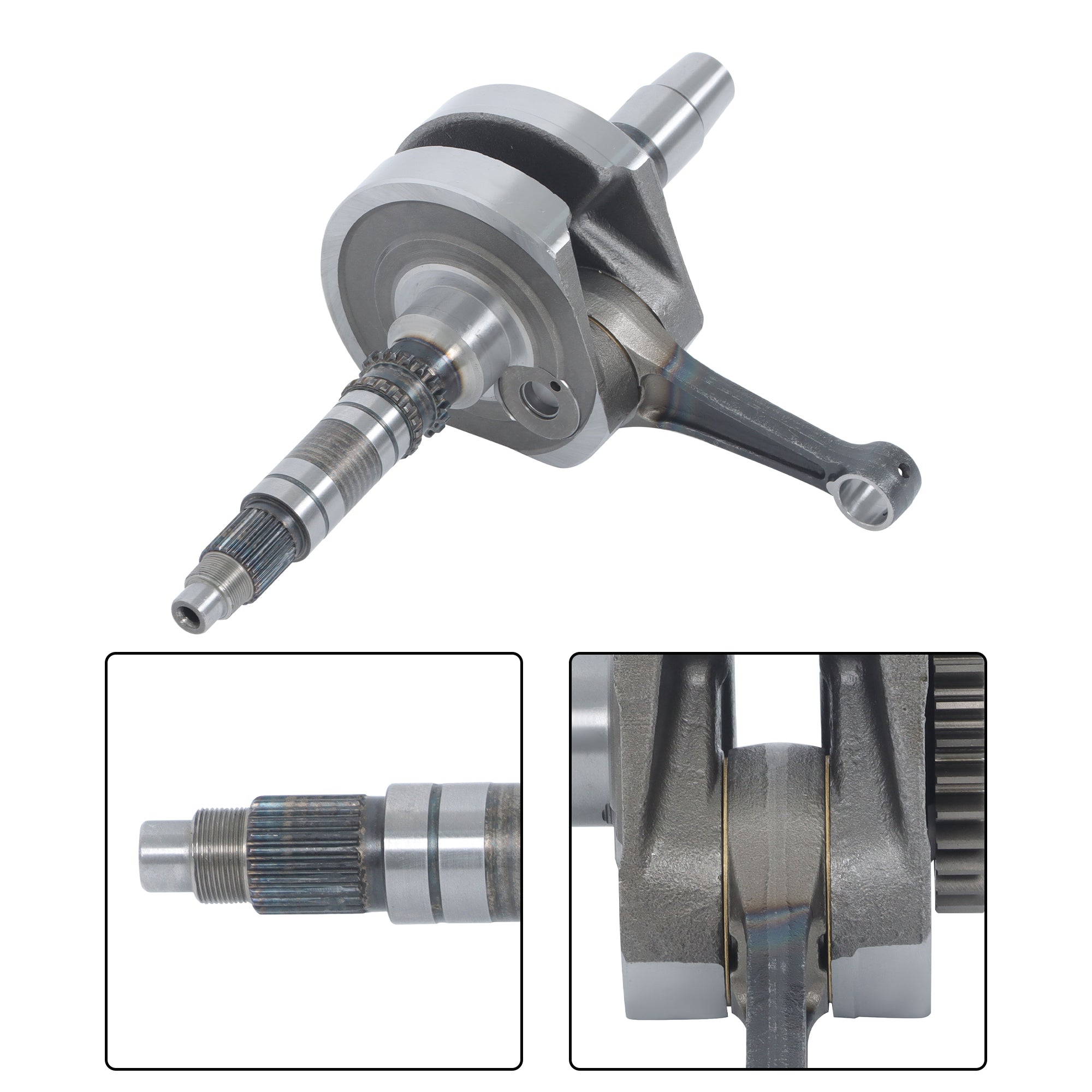

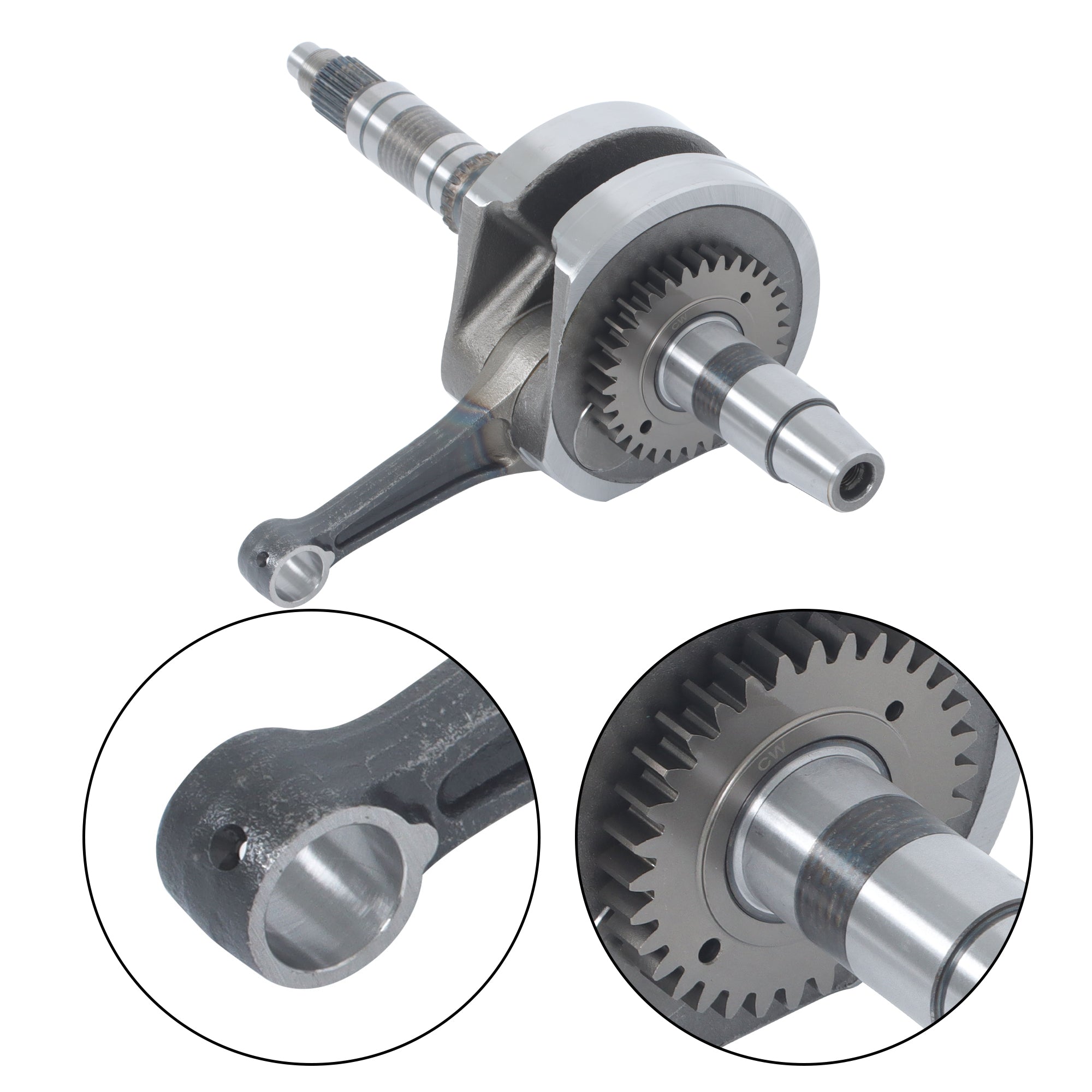

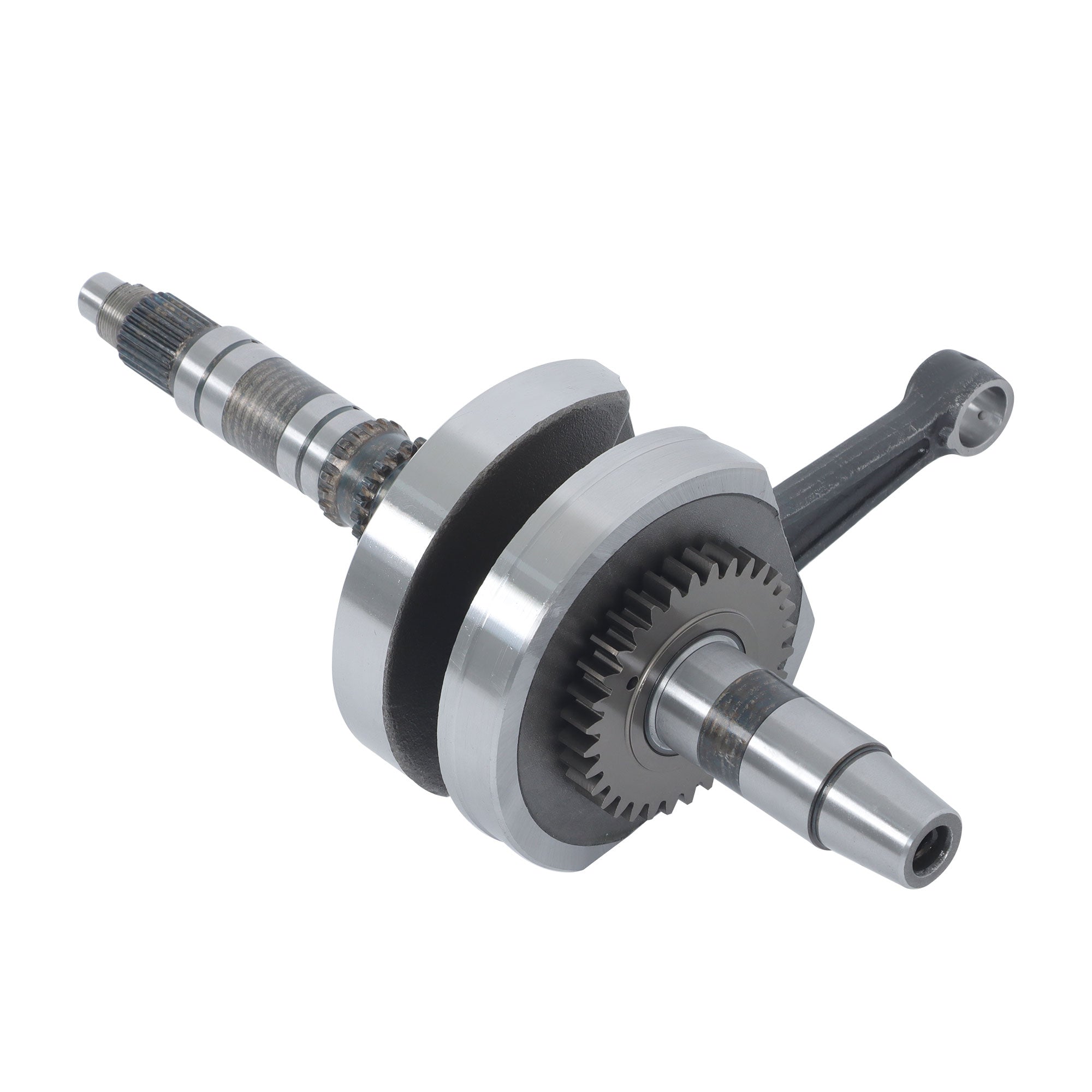

1 x Crankshaft Assembly
-
1 x Complete Piston Kit (Piston, Rings, Wrist Pin, and Circlips)
-
1 x Crankcase / Engine Casing Component
-
1 x Engine Bearings Set
-
1 x Master Overhaul Gasket & Seal Kit (Note: All included components are exactly as shown in the product images. Installation instructions are NOT included).
⚠️ Important Buyer Notes
-
Fitment Verification: Please strictly verify your vehicle's year (2012–2024) and transmission type before purchasing. Ensure your model designation matches FE, FM, TM, or TE.
-
Professional Installation: Due to the complex nature of splitting the crankcase and timing internal engine components, professional installation by a certified powersports mechanic is highly recommended to ensure safe and optimal operation.
-
Image Accuracy: All product photos are captured from the actual parts. What you see is exactly what will be delivered to your door.
