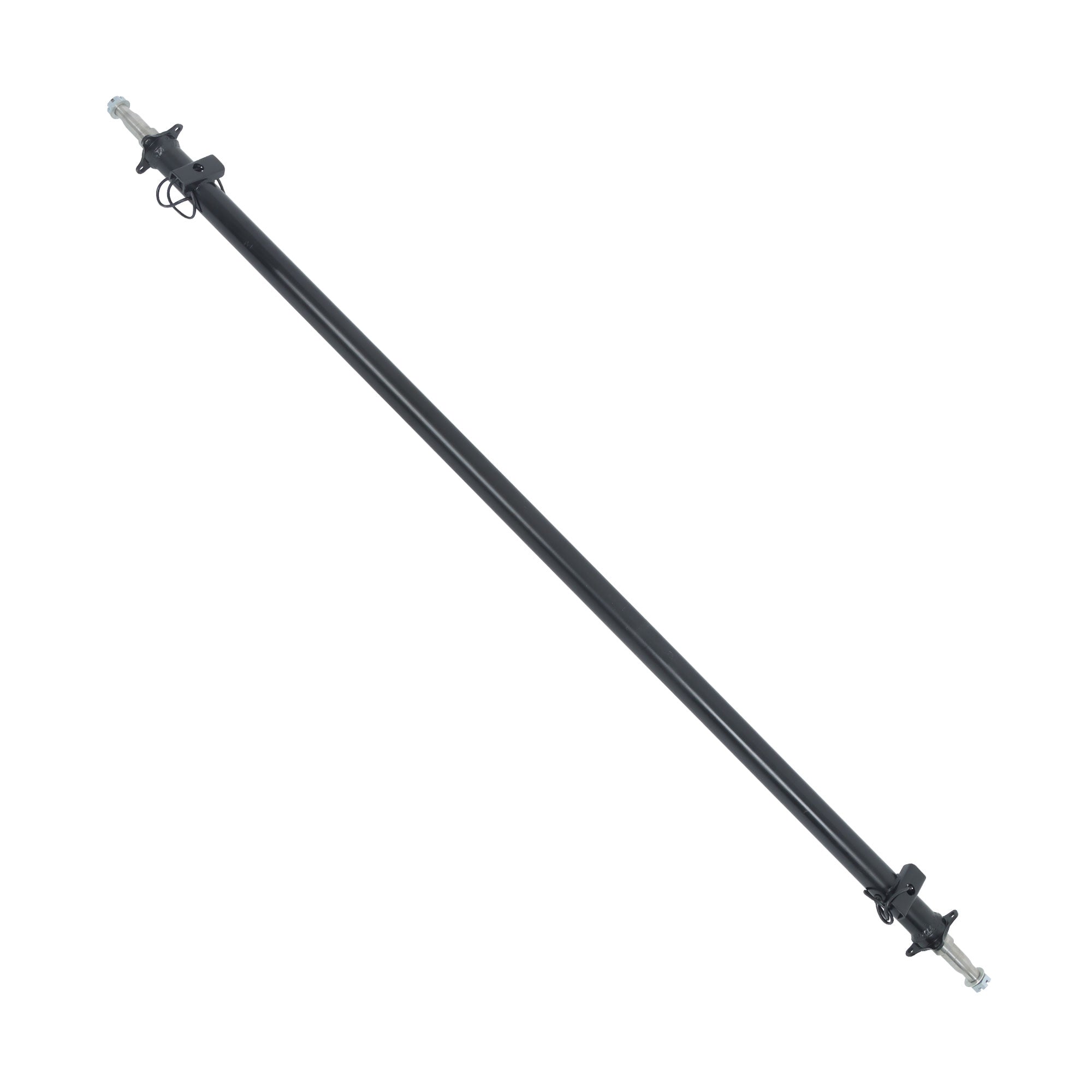

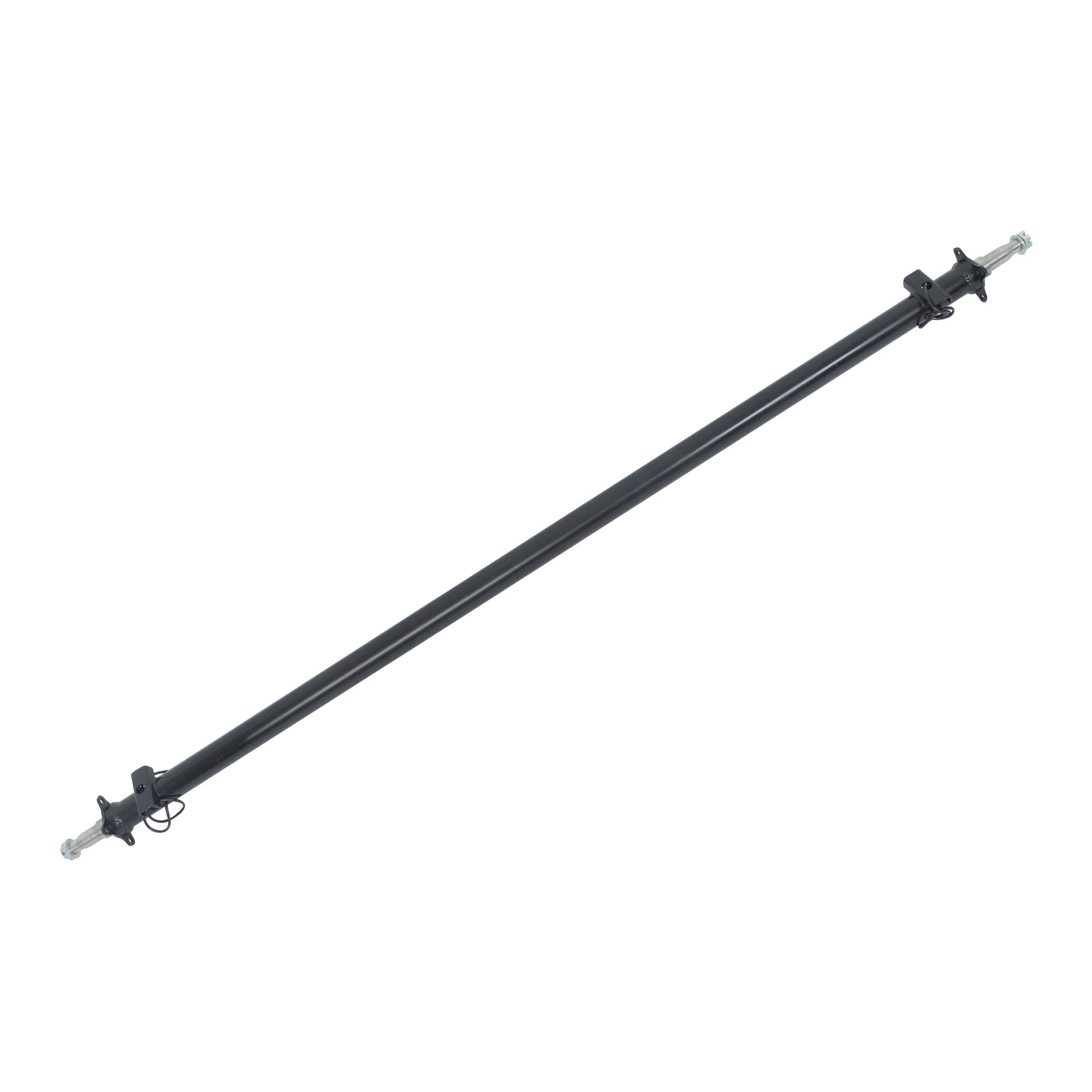

3500lbs Trailer Axle Only Beam With Idler 89" Hub Face 74" Spring Center
Subcribe to back in stock notification
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
Key Features
-
High-Strength Construction: Built with a straight, heavy-duty 5mm thick steel axle tube to ensure even tire wear and a stable highway towing experience.
-

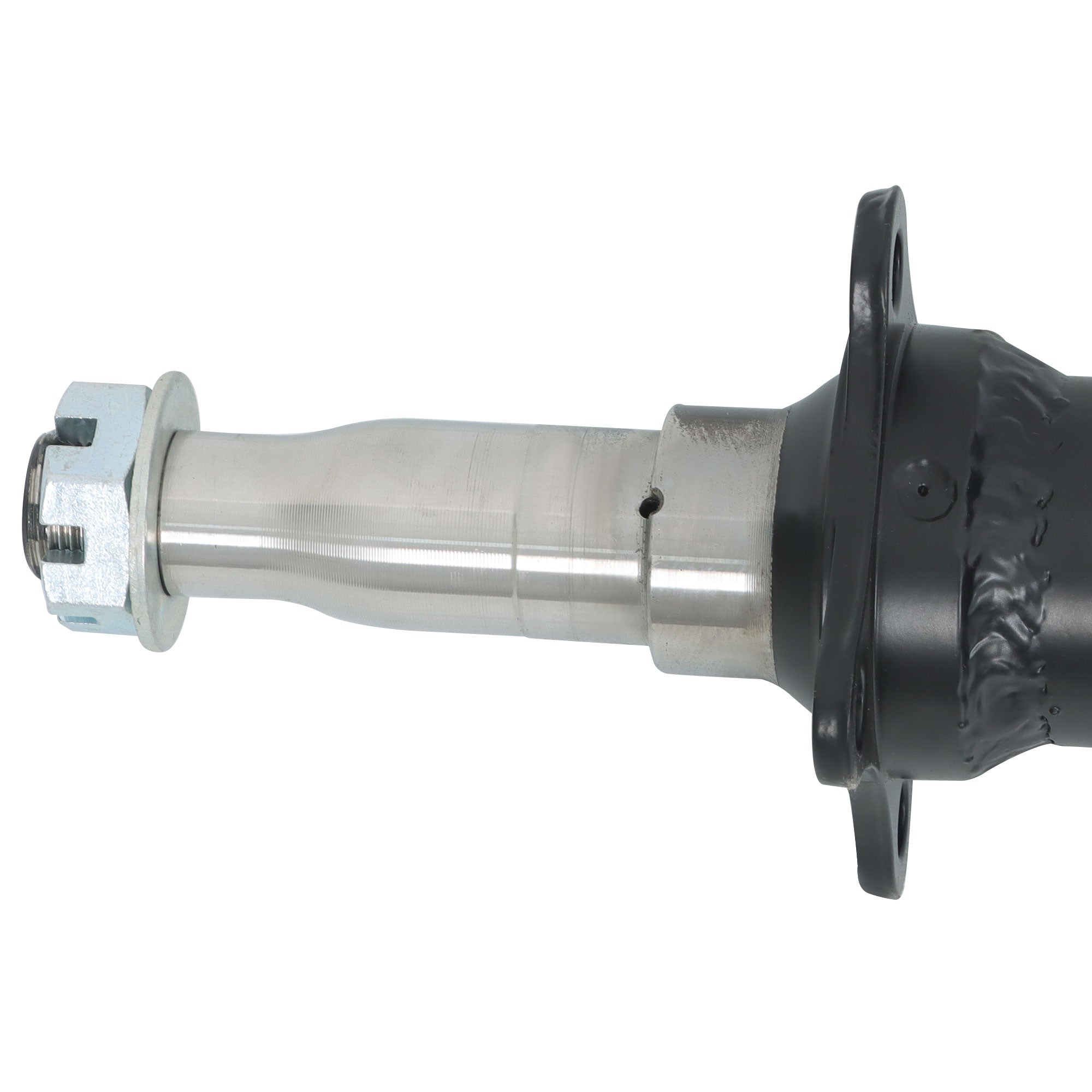

Effortless Maintenance: Features an integrated grease-injection design allowing you to lubricate the axle spindles easily without removing the entire hub assembly.
-
Pre-Wired for Electric Brakes: Internally routed wiring channel included, making it simple and clean to connect aftermarket electric trailer brakes.
-
Underslung Design: The spring seats are factory-welded to the bottom of the axle beam, lowering your trailer's ride height for optimal center of gravity and stability. Pair with double-eye leaf springs for the best performance.
Technical Parameters & Specifications
-
Load Capacity: 3,500 lbs (3.5K)
-
Axle Tube Diameter: 2-3/8 inches
-
Wall Thickness: 5 mm
-

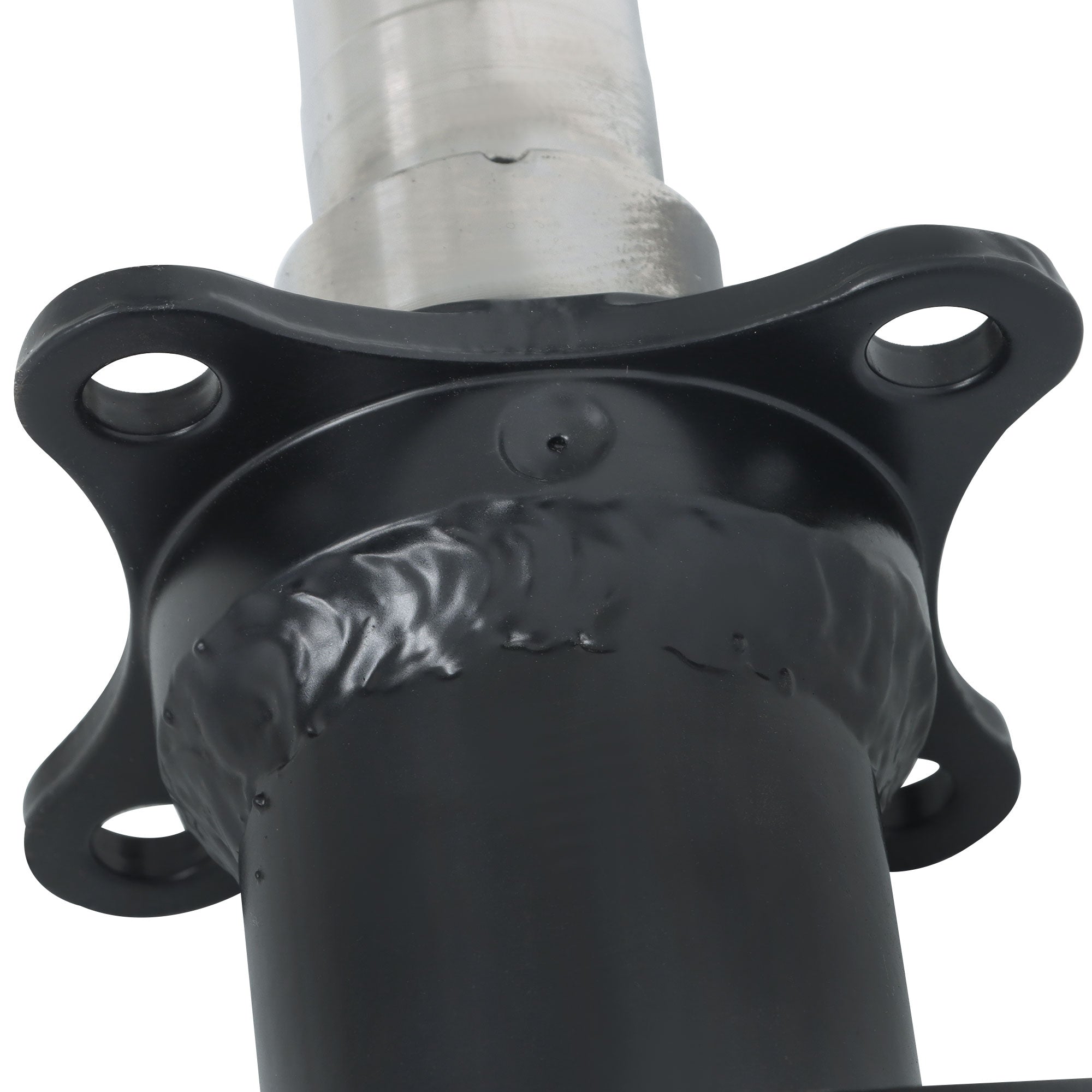

Brake Flange Configuration: 4-Bolt Standard
-
Compatible Bearings: Inner Bearing: L68149 | Outer Bearing: L44649
-
Warranty: 1-Year Manufacturer Warranty
Universal Fitment & Application
A highly versatile replacement beam suitable for all light-duty trailers, including:
-
Utility, Cargo, & Enclosed Trailers
-
Boat / Marine & Car Hauler Trailers
-
ATV, Lawn, Landscape, & Motorcycle Trailers
-
RV & Camper Trailers
Package Includes
-
1 × 3.5K Trailer Axle Beam
-
2 × Grease Zerk / Injection Nozzles
-
2 × Spindle Washers / Gaskets
-

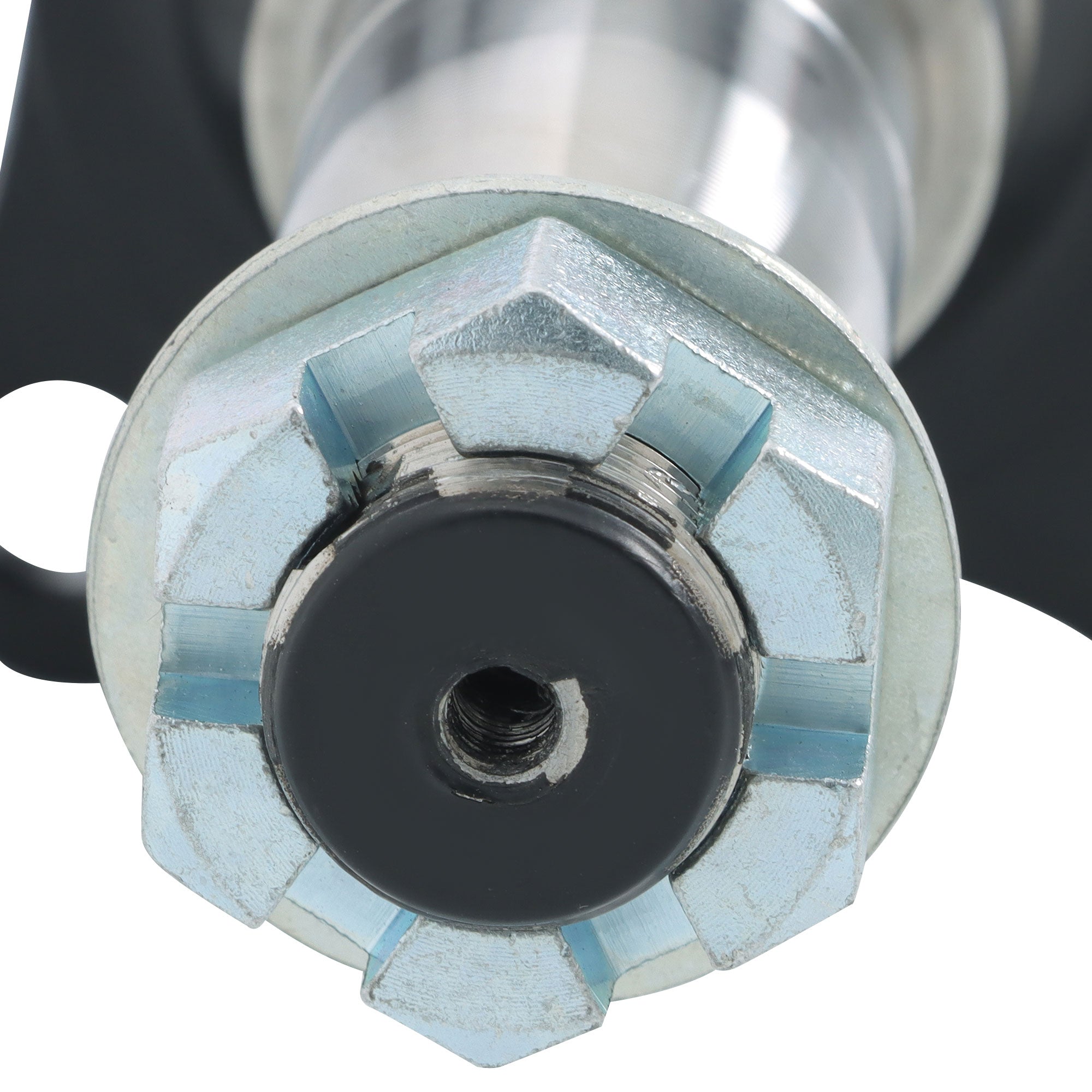

2 × Castle / Spindle Nuts
-
2 × Cotter Pins (Open Mouth Pins)

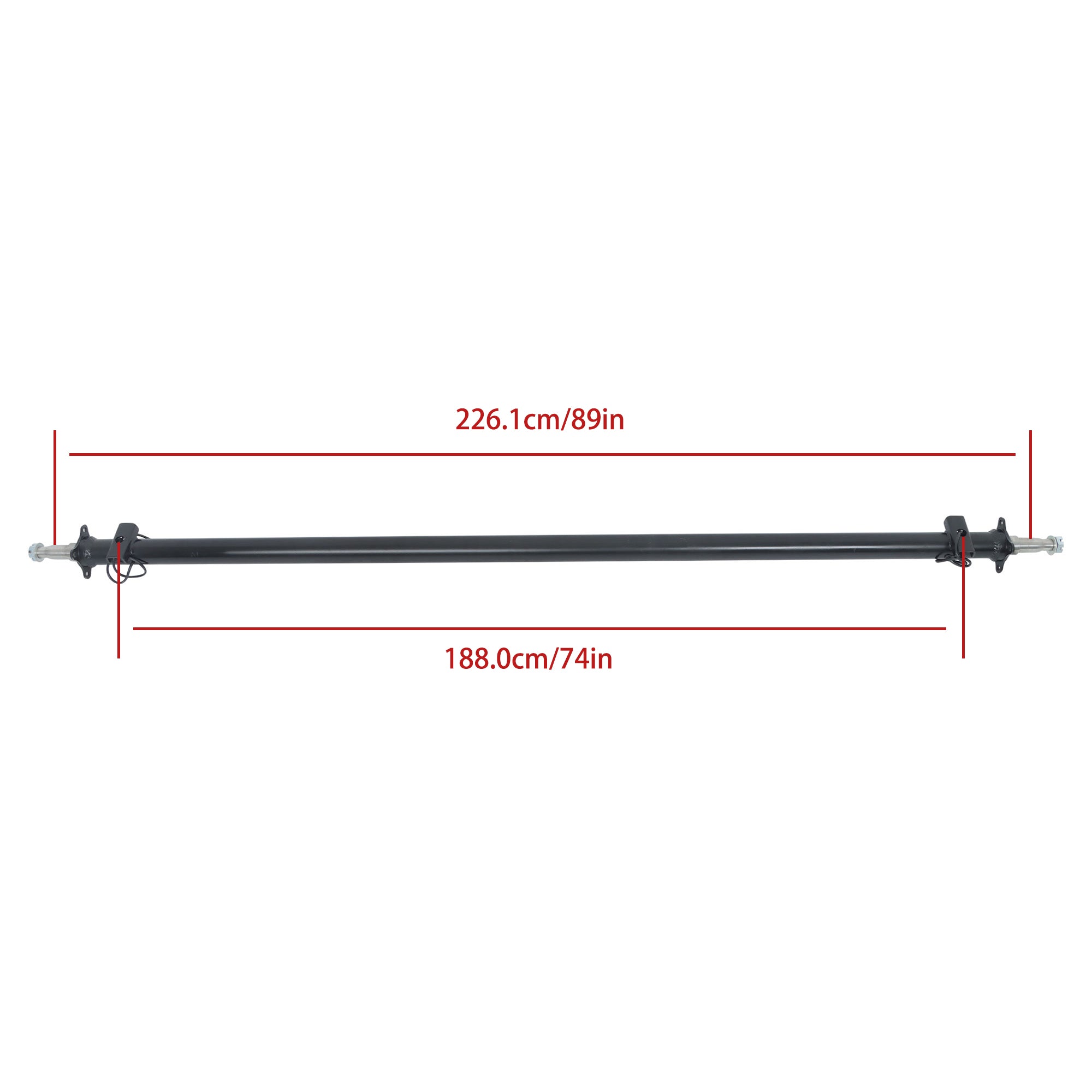

Measurement Guide: How to Order the Right Size
If building a custom trailer from scratch, simply select your desired width. If replacing an existing axle, you MUST verify the following two dimensions (an allowable error of up to 1 inch is acceptable):
-
Hub Face Distance (HF): Measure from the base of the wheel studs on one side across to the base of the wheel studs on the opposite side (where the wheel meets the hub).
-
Spring Center Distance (SC): Measure from the exact center of the welded leaf spring seat on one side to the center of the spring seat on the other side.
Installation Notes
-
Component Notice: This listing is for the Axle Beam Only. It does not include brake assemblies, hubs, or bearings, allowing you to customize your hub face, leaf springs, and U-bolt kit matching your current setup.
-
Resources: Please check the attached product video for installation guidance. Additional assembly and safety assistance can be requested by contacting our customer service.
