Labwork 3Row Radiator+Shroud Fan+Relay For 75-87 El Camino 70-81 Caprice 68-86
Subcribe to back in stock notification
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
About Labwork：
Labwork Is An Auto Parts One-stop Solution Brand Of More Than 10 Years, Which Specializes In Providing Global Customers With Top-notched Quality Automotive Parts & Accessories . If You Need Any Auto Parts, Its Enough To Come To Labwork.
Features：
100% Brand new and never been used.
Direct Bolt-On OE Fitment or Replacement
Improves Cooling by 35% to 45% Temperature
Professional Installation is Highly Recommended

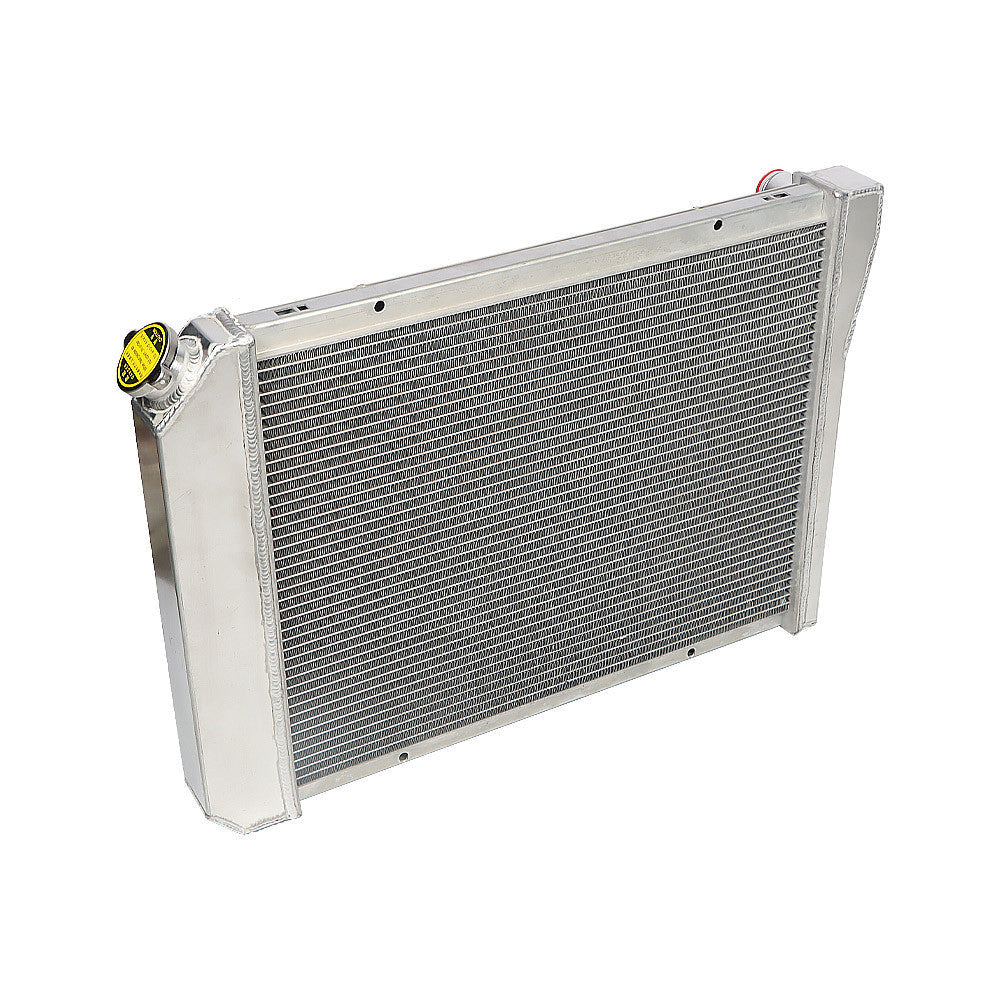

3 Row Radiator:
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Core Size: 538 x 428 x 42mm (21.18" x 16.85" x 1.65")
Overall Size: 688 x 474 x 150mm (27.09" x 18.66" x 5.91")

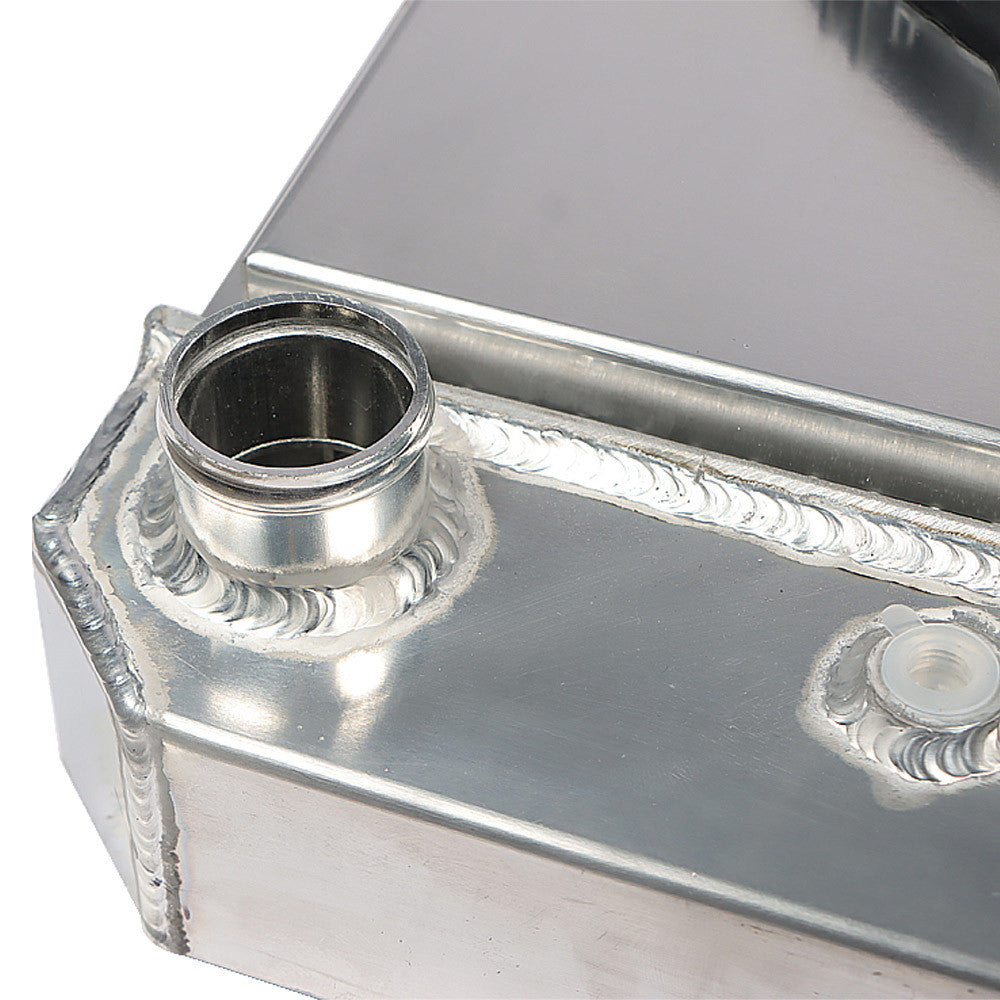

Inlet / Outlet Diameter: 1.57" / 1.77"
Auto transmission oil cooler: Build-in

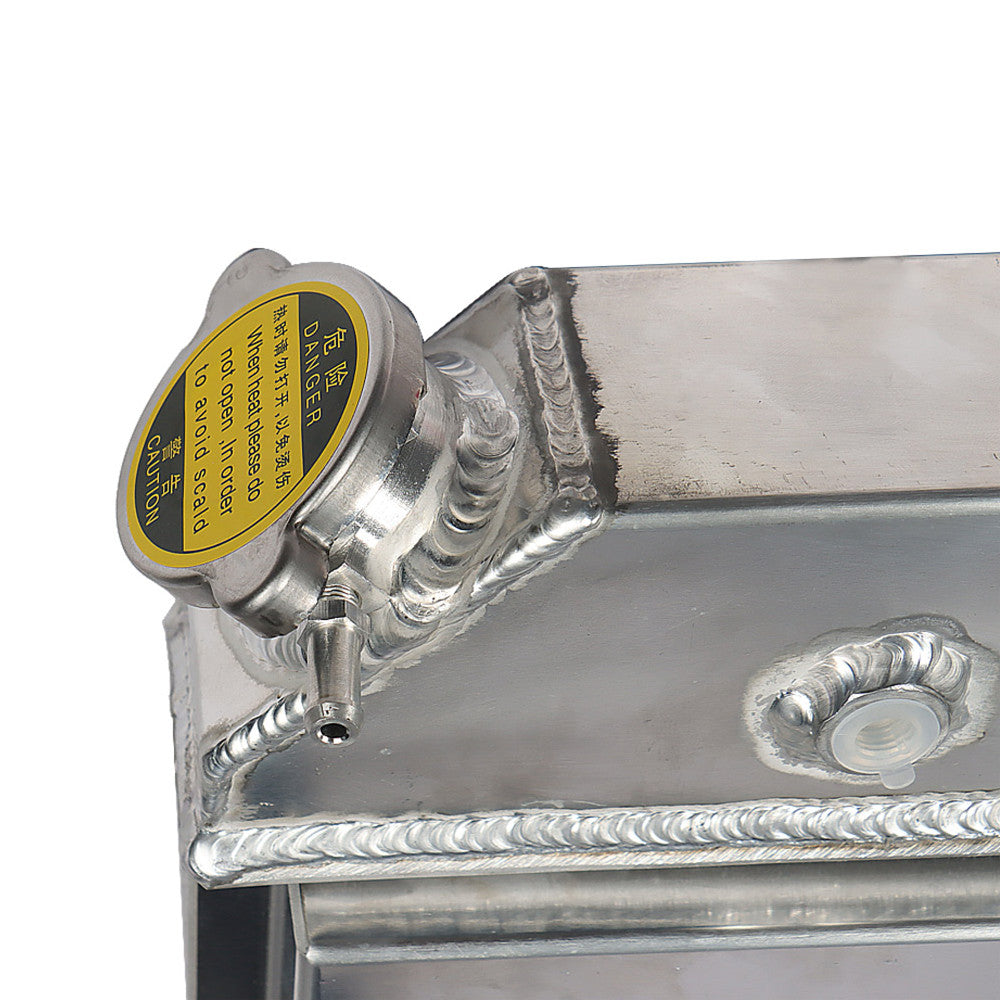

OE Style Brass Petcock Drain.

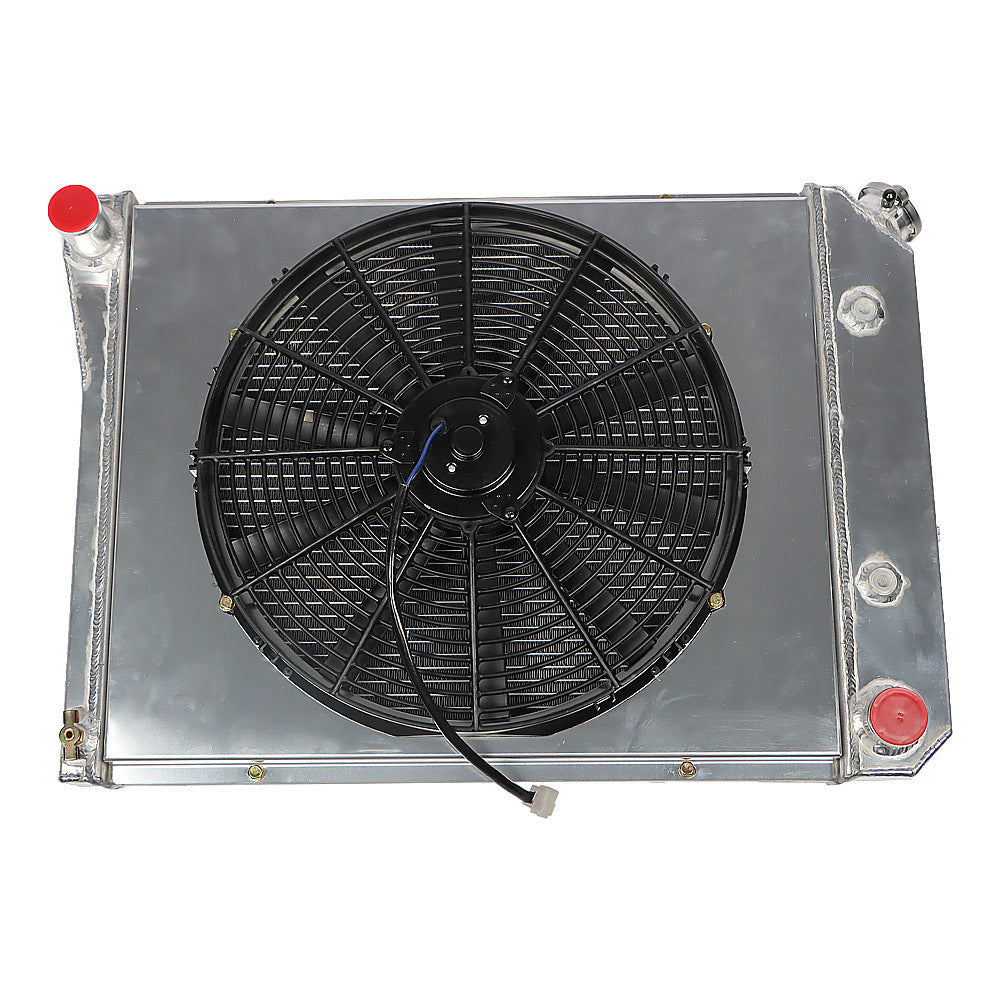

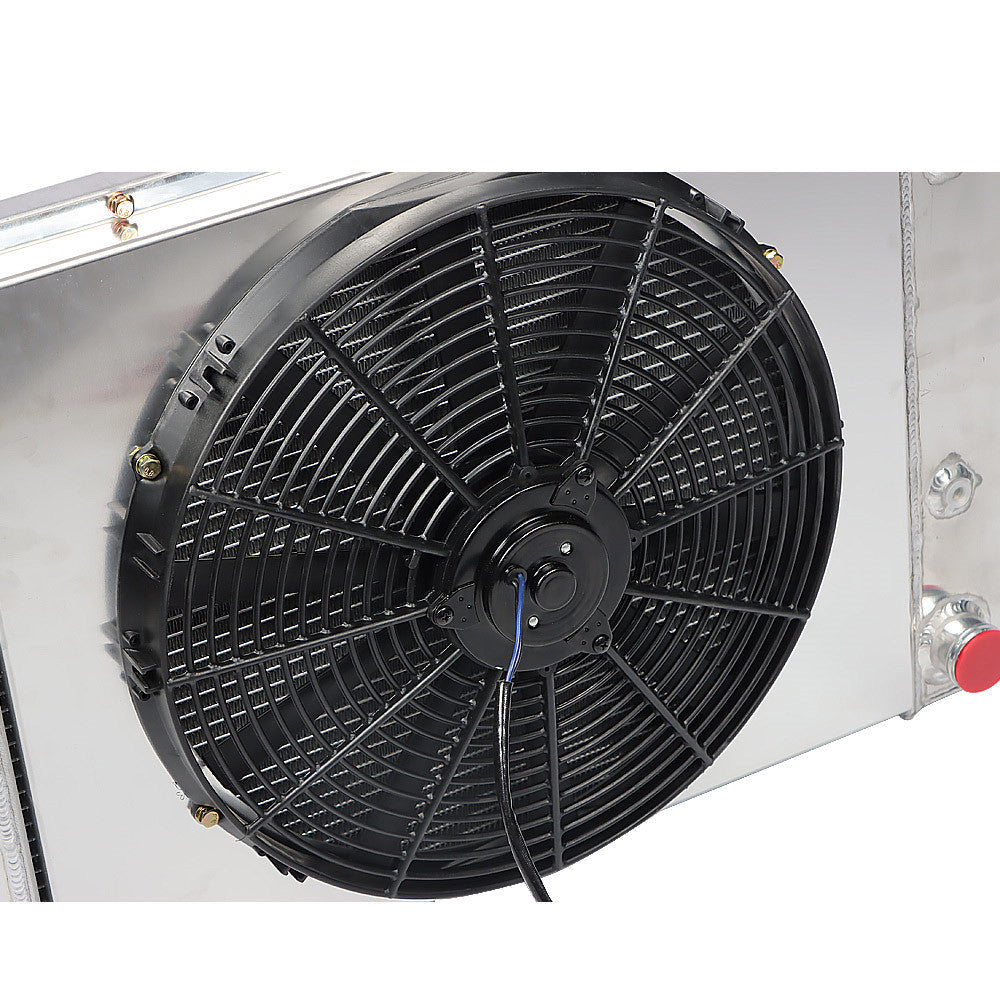

16" Slim Fan:
12V, 120W
≤11 AMP DRAW
10 Blades
Color: Black
Fan Diameter: 16.82"
Fan Thickness: 3.27"
Maximum Fan CFM: 1000 CFM
Maximum Fan RPM: 2000±10% RPM
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Fitment:
For Buick Apollo 4.1L L6 4097cc 250ci 1973-1974
For Buick Apollo 4.1L L6 -cc 250ci 1973-1974
For Buick Apollo 4.1L L6 4098cc 250ci 1973-1974
For Buick Century 3.8L V6 3800cc 231ci 1980-1981
For Buick Century 5.0L V8 -cc 305ci 1981
For Buick Electra 4.1L V6 -cc 252ci 1980-1984
For Buick Gran Sport 6.6L V8 6572cc 401ci 1965-1966
For Buick LeSabre 3.8L V6 3800cc 231ci 1980-1985
For Buick LeSabre 4.1L V6 -cc 252ci 1980-1984
For Buick Regal 3.8L V6 3800cc 231ci 1980-1987
For Buick Regal 4.1L V6 -cc 252ci 1982-1984
For Buick Skylark 4.1L L6 -cc 250ci 1968-1969
For Buick Skylark 4.1L L6 4097cc 250ci 1968-1969
For Buick Skylark 4.1L L6 4098cc 250ci 1968-1969
For Buick Skylark 3.7L V6 3687cc 225ci 1965-1966
For Buick Skylark 4.9L V8 4917cc 300ci 1965-1966
For Buick Skylark 5.6L V8 5573cc 340ci 1966
For Buick Skylark 6.6L V8 6572cc 401ci 1965-1966
For Buick Special 4.1L L6 4098cc 250ci 1968-1969
For Buick Special 4.1L L6 4097cc 250ci 1968-1969
For Buick Special 4.9L V8 4917cc 300ci 1965-1967
For Buick Special 3.7L V6 3687cc 225ci 1965-1967
For Buick Sportwagon 5.6L V8 5573cc 340ci 1966-1967
For Chevrolet Bel Air 4.1L L6 -cc 250ci 1971-1973
For Chevrolet Camaro 5.7L V8 -cc 350ci 1970-1971
For Chevrolet Camaro 3.8L V6 -cc 229ci 1980-1981
For Chevrolet Camaro 3.8L V6 3800cc 231ci 1980-1981
For Chevrolet Camaro 4.1L L6 -cc 250ci 1968-1974
For Chevrolet Camaro 4.4L V8 -cc 267ci 1980-1981
For Chevrolet Camaro 5.0L V8 -cc 307ci 1970-1971
For Chevrolet Camaro 5.0L V8 5031cc 307ci 1970-1971
For Chevrolet Camaro 4.1L L6 4097cc 250ci 1967-1971
For Chevrolet Camaro 4.1L L6 4098cc 250ci 1967-1971
For Chevrolet Caprice 4.3L V6 -cc 262ci 1985-1986
For Chevrolet Caprice 3.8L V6 3800cc 231ci 1980-1985
For Chevrolet Caprice 3.8L V6 -cc 229ci 1980-1984
For Chevrolet Chevelle 4.1L L6 -cc 250ci 1968-1973
For Chevrolet Chevelle 5.0L V8 -cc 307ci 1968-1971
For Chevrolet Chevelle 5.0L V8 5031cc 307ci 1968-1971
For Chevrolet Chevelle 4.1L L6 4097cc 250ci 1968-1971
For Chevrolet Chevelle 4.1L L6 4098cc 250ci 1968-1971
For Chevrolet Chevelle 3.8L L6 3769cc 230ci 1968-1969
For Chevrolet Chevelle 3.8L L6 -cc 230ci 1968-1969
For Chevrolet Chevelle 5.7L V8 -cc 350ci 1969-1971
For Chevrolet Chevy II 5.0L V8 -cc 307ci 1968
For Chevrolet Chevy II 5.4L V8 -cc 327ci 1968
For Chevrolet Chevy II 5.0L V8 5031cc 307ci 1968
For Chevrolet Chevy II 3.8L L6 3769cc 230ci 1968
For Chevrolet Chevy II 4.1L L6 4098cc 250ci 1968
For Chevrolet Chevy II 4.1L L6 4097cc 250ci 1968
For Chevrolet Chevy II 5.3L V8 5358cc 327ci 1968
For Chevrolet Chevy II 4.1L L6 -cc 250ci 1968
For Chevrolet Chevy II 3.8L L6 -cc 230ci 1968
For Chevrolet Chevy II 5.7L V8 -cc 350ci 1968
For Chevrolet El Camino 3.8L V6 -cc 231ci 1979
For Chevrolet El Camino 3.8L V6 3800cc 231ci 1979-1984
For Chevrolet El Camino 3.8L V6 -cc 229ci 1980-1984
For Chevrolet El Camino 4.3L V6 -cc 262ci 1985-1987
For Chevrolet El Camino 4.1L L6 -cc 250ci 1968-1971
For Chevrolet El Camino 3.8L L6 -cc 230ci 1968-1969
For Chevrolet El Camino 4.1L L6 4097cc 250ci 1968-1971
For Chevrolet El Camino 4.1L L6 4098cc 250ci 1968-1971
For Chevrolet El Camino 5.3L V8 5358cc 327ci 1968
For Chevrolet El Camino 3.8L L6 3769cc 230ci 1968-1969
For Chevrolet El Camino 5.4L V8 -cc 327ci 1968
For Chevrolet Impala 3.8L V6 -cc 229ci 1980-1984
For Chevrolet Impala 3.8L V6 3800cc 231ci 1980-1984
For Chevrolet Impala 4.3L V6 -cc 262ci 1985
For Chevrolet Malibu 3.8L V6 -cc 229ci 1980-1983
For Chevrolet Malibu 3.8L V6 3800cc 231ci 1978-1983
For Chevrolet Malibu 3.8L V6 -cc 231ci 1979
For Chevrolet Monte Carlo 3.8L V6 -cc 231ci 1979, 1986-1987
For Chevrolet Monte Carlo 3.8L V6 3800cc 231ci 1979-1985
For Chevrolet Monte Carlo 3.8L V6 -cc 229ci 1980-1984
For Chevrolet Monte Carlo 4.3L V6 -cc 262ci 1986-1988
For Chevrolet Nova 2.5L L4 2507cc 153ci 1969
For Chevrolet Nova 3.8L L6 -cc 230ci 1969-1970
For Chevrolet Nova 5.0L V8 -cc 307ci 1969-1972
For Chevrolet Nova 6.5L V8 -cc 396ci 1969
For Chevrolet Nova 3.8L L6 3769cc 230ci 1969-1970
For Chevrolet Nova 4.1L L6 -cc 250ci 1969-1975
For Chevrolet Nova 4.1L L6 4098cc 250ci 1969-1974
For Chevrolet Nova 4.1L L6 4097cc 250ci 1969-1974
For Chevrolet Nova 5.0L V8 5031cc 307ci 1969-1972
For Chevrolet Nova 6.5L V8 6489cc 396ci 1969
For Chevrolet Nova 5.7L V8 -cc 350ci 1969-1972
For GMC Caballero 3.8L V6 -cc 229ci 1980-1984
For GMC Caballero 3.8L V6 3800cc 231ci 1980-1984
For GMC Caballero 4.3L V6 -cc 262ci 1985-1987
For Oldsmobile 98 4.1L V6 -cc 252ci 1981-1983
For Oldsmobile Cutlass 3.8L V6 3800cc 231ci 1980-1981
For Oldsmobile Cutlass Calais 3.8L V6 3800cc 231ci 1980-1984
For Oldsmobile Cutlass Cruiser 3.8L V6 3800cc 231ci 1980-1983
For Oldsmobile Cutlass Salon 3.8L V6 3800cc 231ci 1980, 1985-1987
For Oldsmobile Cutlass Supre 3.8L V6 3800cc 231ci 1980-1987
For Oldsmobile Delta 88 3.8L V6 3800cc 231ci 1979-1985
For Oldsmobile F85 4.1L L6 -cc 250ci 1966
For Oldsmobile F85 4.1L L6 4097cc 250ci 1966-1967
For Oldsmobile F85 4.1L L6 4098cc 250ci 1966-1967
For Oldsmobile Omega 4.1L L6 -cc 250ci 1973
For Pontiac Bonneville 3.8L V6 3800cc 231ci 1980-1986
For Pontiac Bonneville 4.3L V6 -cc 262ci 1986
For Pontiac Bonneville 4.1L V6 -cc 252ci 1982
For Pontiac Catalina 3.8L V6 3800cc 231ci 1979-1981
For Pontiac Catalina 3.8L V6 -cc 229ci 1980
For Pontiac Firebird 4.1L L6 -cc 250ci 1974
For Pontiac Grand LeMans 3.8L V6 -cc 229ci 1980-1981
For Pontiac Grand LeMans 3.8L V6 3800cc 231ci 1980-1981
For Pontiac Grand Prix 4.1L V6 -cc 252ci 1982
For Pontiac Grand Prix 3.8L V6 3800cc 231ci 1979-1987
For Pontiac Grand Prix 4.3L V6 -cc 262ci 1986-1987
For Pontiac Grand Prix 4.4L V8 -cc 267ci 1981
For Pontiac LeMans 3.8L V6 -cc 229ci 1980-1981
For Pontiac LeMans 3.8L V6 3800cc 231ci 1980-1981
For Pontiac Parisienne Brougham 1984 3.8L V6 3800cc 231ci GAS
For Pontiac Parisienne 3.8L V6 -cc 231ci 1985GAS
For Pontiac Parisienne 4.3L V6 -cc 262ci 1985GAS
For Pontiac Parisienne 4.3L V6 -cc 262ci 1986
For Pontiac Ventura Custom 1973-1974 4.1L L6 -cc 250ci
For Pontiac Ventura 5.0L V8 5031cc 307ci 1972
For Pontiac Ventura 5.7L V8 5733cc 350ci 1972

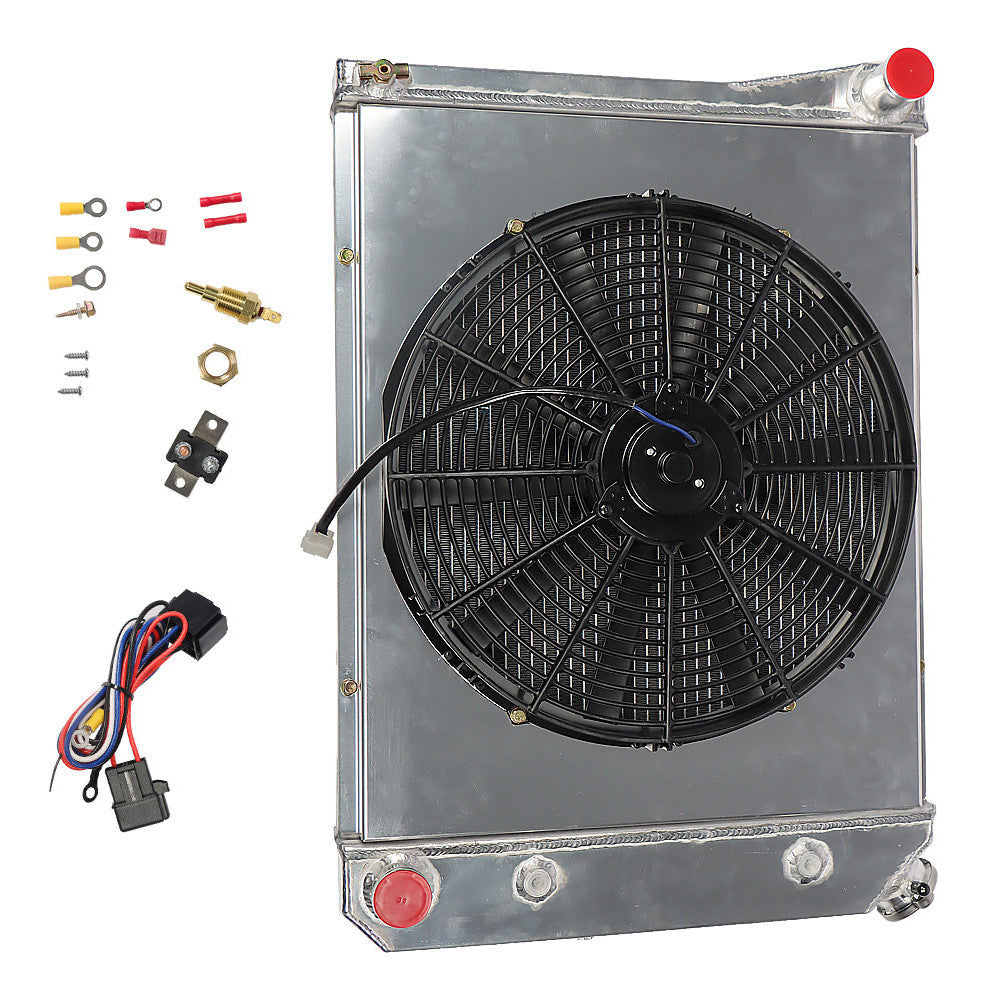

Package Includes：
1* 3-Row Aluminum Radiator (Includes Radiator Cap)
1* Aluminum Shroud
1* 16" Fans (Includes mounting kits)
1* Thermostat Relay Kit
Just as pictures show
