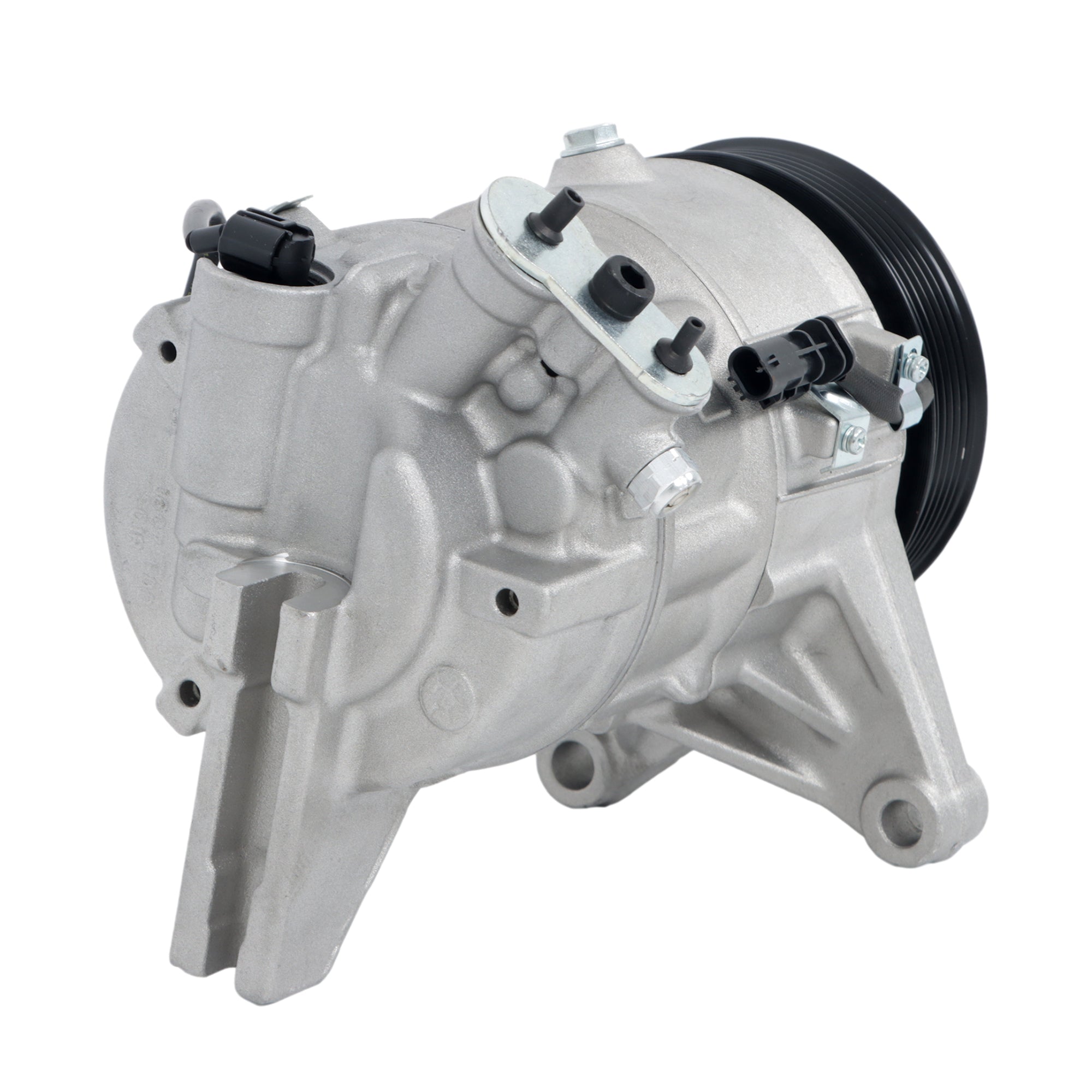

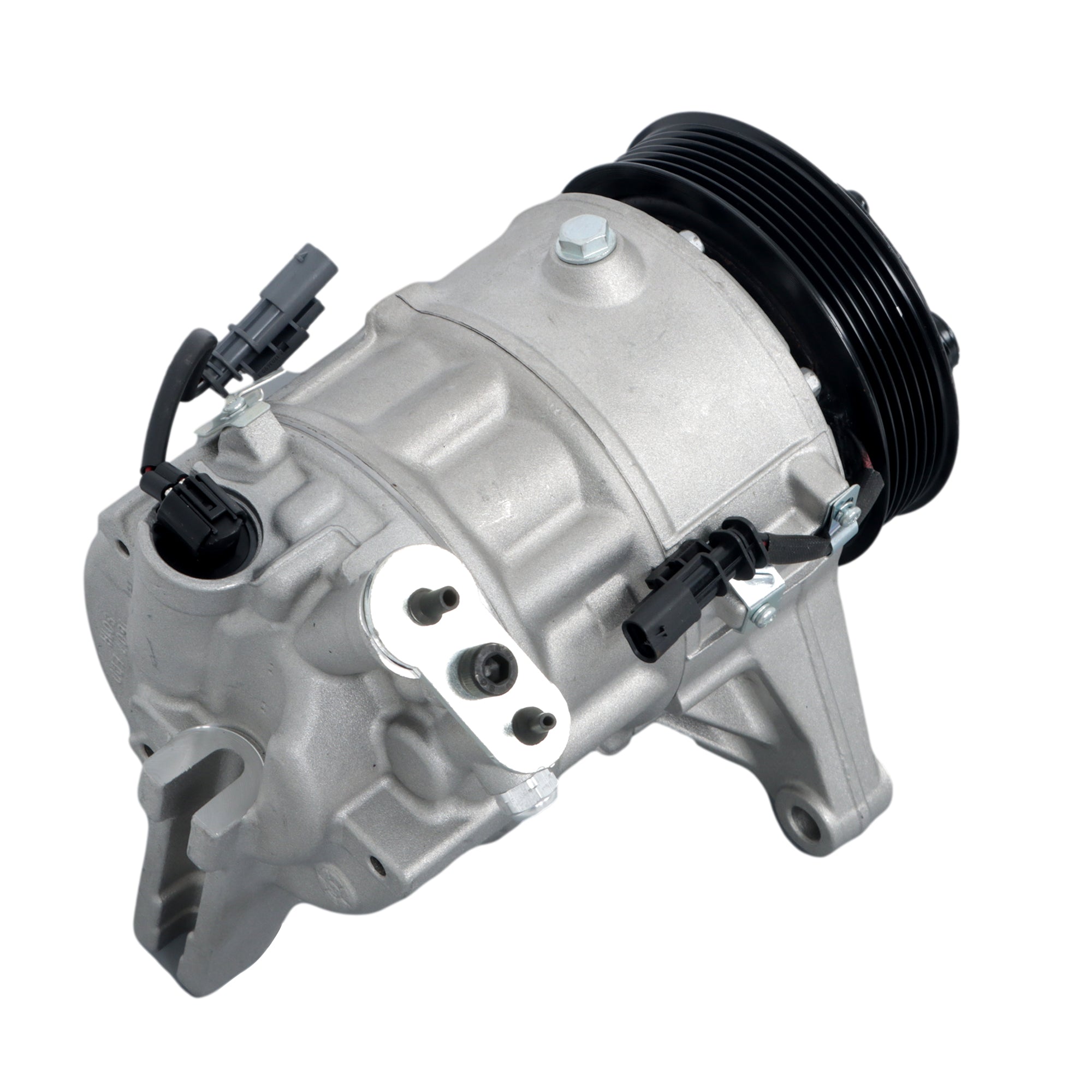

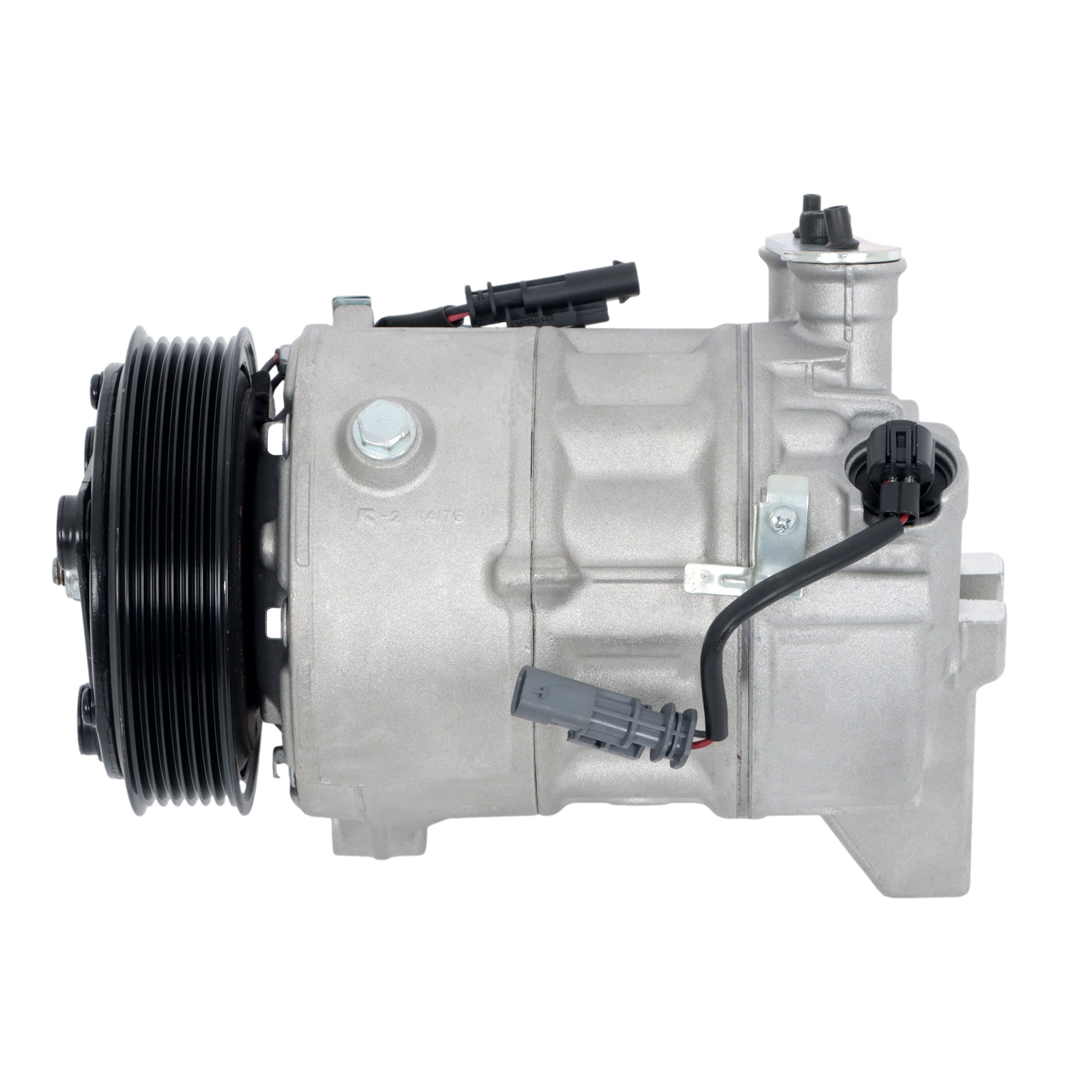

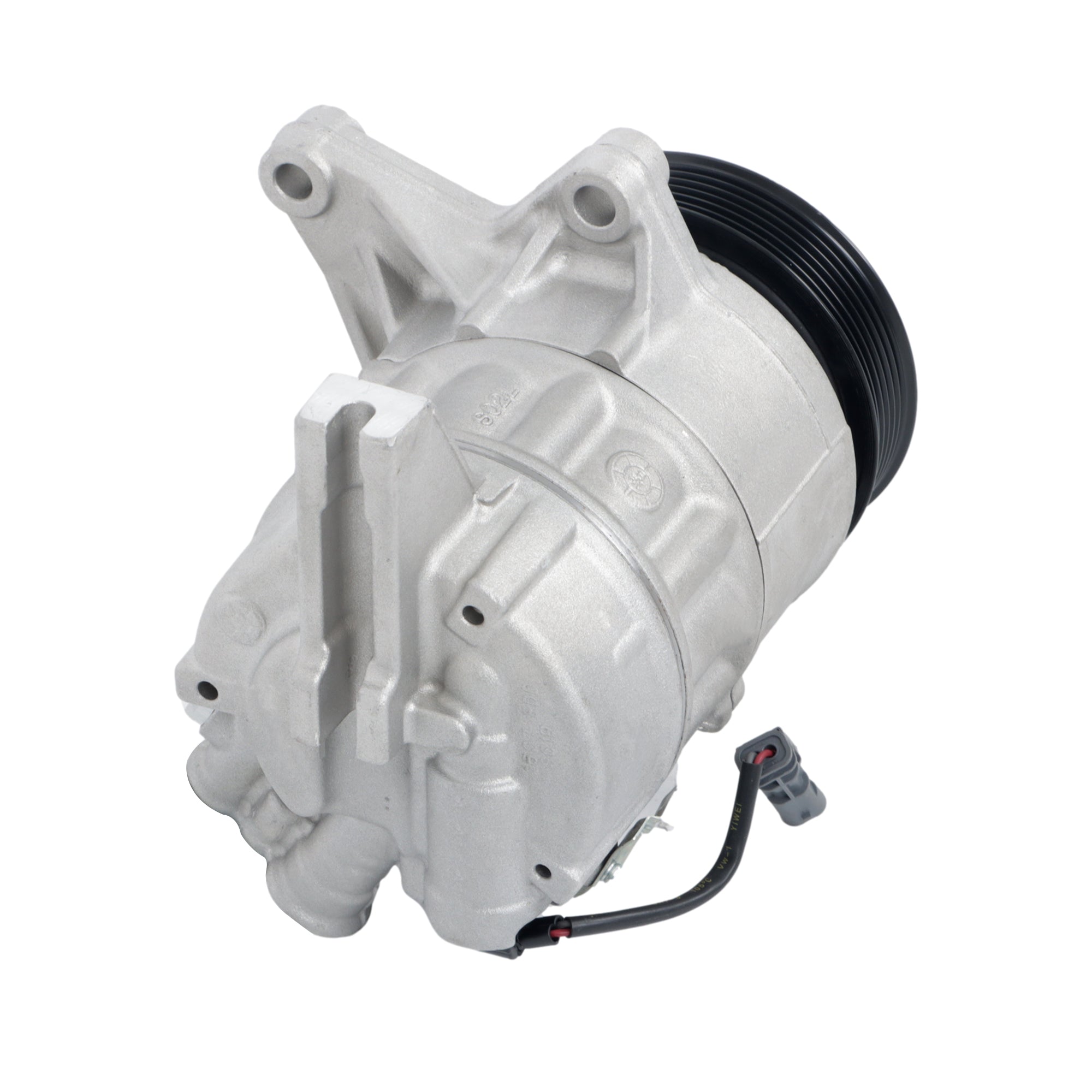

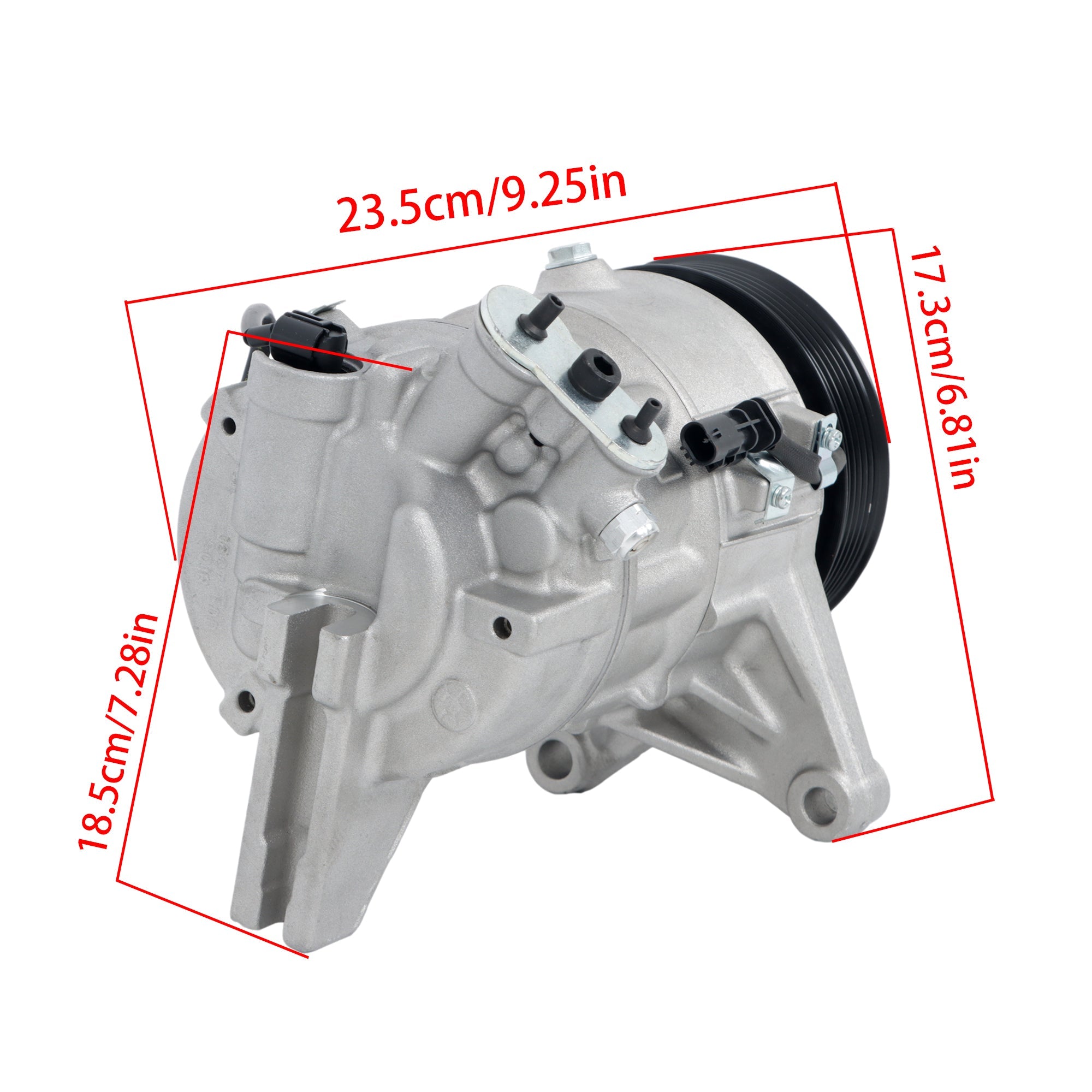

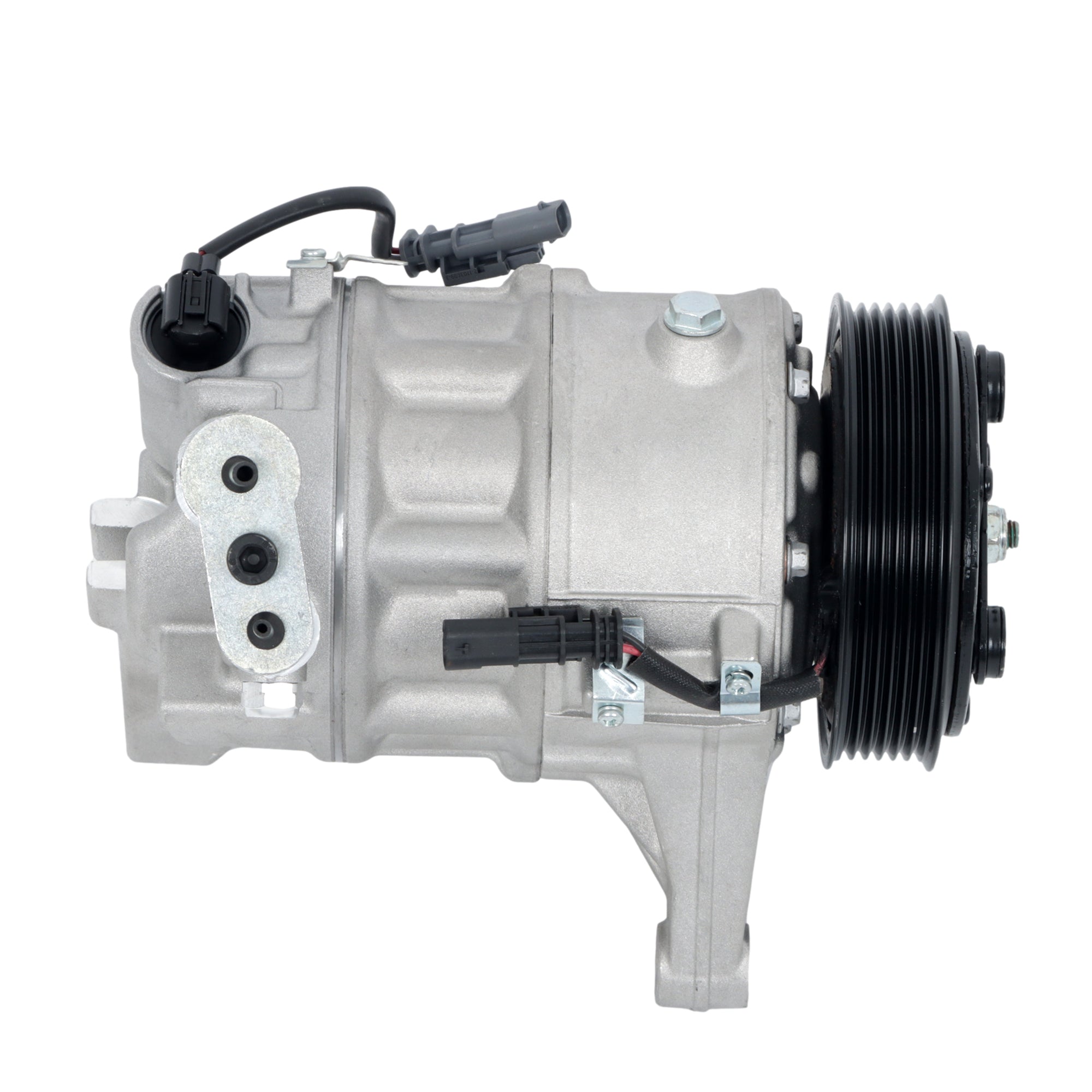

labwork CO 22289C A/C Compressor with Clutch for 2014-2020 Chevy Chevrolet Impala 3.6L V6
Subcribe to back in stock notification
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
Key Features
-
Direct OEM Quality Replacement: 100% brand-new aftermarket air conditioning compressor engineered to match or exceed original factory specifications, restoring maximum passenger-cabin cooling performance.
-
Premium CVC Mechanical Build: Equipped with a precision-balanced 6-groove electronic pulley clutch assembly and internal control valve system for low-vibration operation and optimized drag relief on the serpentine belt.
-
Rigorous Leak Testing: Factory-checked under intense pressure cycles using high-grade internal seals to guarantee reliable, rattle-free service in all weather conditions.
Reference Part Numbers
-
Interchange Part Numbers: CO 22289C, 67221, 68221, 15-22325, 6513006, 7513006, 14-22241C
Technical Specifications
-
Compressor Casing Type: CVC
-
Pulley Belt Grooves: 6 Grooves
-
System Operating Voltage: 12V
-
Pulley Assembly Diameter: 119 mm
-
Suction Port Inner Diameter: 17 mm
-
Discharge Port Inner Diameter: 11 mm
-
Integrated Control Valve: Yes (Y)
Comprehensive Fitment Guide
Specifically engineered to fit the following General Motors (GM) luxury, sedan, and utility crossover platforms:
💡 Tip: Press "Ctrl + F" to quickly scan for your vehicle's specific make, model year, or powertrain layout.
Chevrolet Models
-
Impala: 2014–2020
-
Fits 3.6L V6 (Gas/Flex/Bi-Fuel / VIN: 3, N), 2.5L L4 (Gas/Flex / VIN: A, L), & 2.4L Mild Hybrid (VIN: R)
-
-
Impala Limited: 2014–2016 (3.6L V6 Flex Only / Includes Police Trims / VIN: 3)
-
Equinox: 2015–2017 (3.6L V6 Gas/Flex Only / Trims: LT, LTZ, Premier / VIN: 3)
GMC Models
-
Terrain: 2015–2017 (3.6L V6 Gas/Flex Only / Trims: SLE, SLT, Denali / VIN: 3)
Cadillac Models
-
XTS: 2013–2019
-
Fits both 3.6L V6 Naturally Aspirated (VIN: 3) & 3.6L V6 Twin-Turbocharged Vsport Models (VIN: 8)
-
Buick Models
-
LaCrosse: 2013–2016 (3.6L V6 Gas/Flex Only / Trims: Base, Leather, Premium, Touring, CXS, Sport Touring / VIN: 3)
Package Includes
-
1 x Complete A/C Compressor with Electromagnetic Clutch & Control Valve (Note: A/C refrigerant, specialized PAG oil charge, manifold sealing O-rings, and vehicle mounting bolts are NOT included).
Important Buyer Notes
-
VIN and Engine Verification: Please check your vehicle's 8th VIN digit and engine sizing before purchasing. For full compatibility, your vehicle must match the specific alpha-numeric identifiers listed in our fitment guide.
-
Mandatory System Flush: When replacing a failed A/C compressor, you must flush the entire A/C line loop, install a fresh receiver-drier/desiccant elements, and swap out the expansion valve. Residual metallic debris left behind by an old compressor will instantly damage this new component and void coverage.
-
Professional Installation Required: Due to environmental regulations governing the extraction, handling, and pressurized charging of automotive refrigerants, this item must be installed by a certified mobile HVAC technician.
