Labwork For 73-87 Chevy C/K Series Pickup Blazer/GMC 3Row Radiator+Shroud Fan
Subcribe to back in stock notification
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
About Labwork：
Labwork Is An Auto Parts One-stop Solution Brand Of More Than 10 Years, Which Specializes In Providing Global Customers With Top-notched Quality Automotive Parts & Accessories . If You Need Any Auto Parts, Its Enough To Come To Labwork.
Features：
Part Number: 716/CC716/CU716/DPI716/CU1599/EC716/AE716/MC716

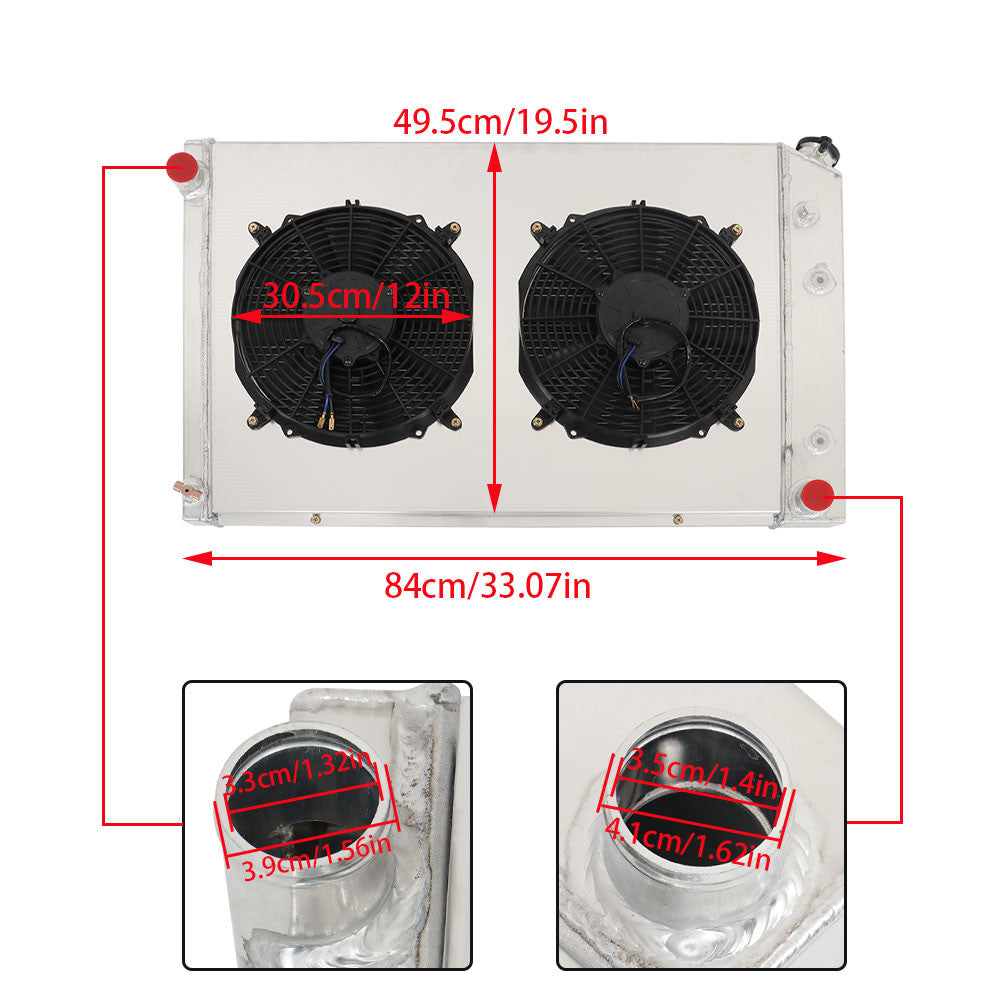

This Radiator Size:
3-Row of tubes Core Racing Design
Core Size:19" Height x 28-1/4" Width x 1 3/4"
Overall Size:20-1/4" Height x 33-1/4" Width
Upper Inlet Size:1 1/2" located on the driver side
Lower Outlet Size:1 1/2" located on the passenger side
Transmission Cooler: ￠32×215×G1/4（Z）
ONLY For Engines using 28 1/4" WIDTH X 19" HEIGHT CORE.
Fan Specification:
Diameter: 12'' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 90W
Fan Thickness: 2.5"
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 80 watt motor will keep your engine cool.
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
Comes on at 185º AND Turns off at 165º.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.
Fitment：
1990 For Chevrolet Blazer / Gmc V3500
1975 1979 1981 1983 For Chevrolet C10 4.1l 4.8l 5.0l 5.7l 6.2l 6.6l 7.4l
1974 1975 1979 1985 For Chevrolet C10 Suburban
1976 1980 1981 1982 1986 For Chevrolet C20 4.1l 4.3l 4.8l 5.0l 5.7l 6.2l 7.4l
1974 1975 1979 1983 For Chevrolet C20 Suburban
1977 1982 1986 For Chevrolet C30
1974 For Chevrolet C30 Pickup
1978 1979 1982 1986 For Chevrolet K10
1973 For Chevrolet K10 Pickup / Gmc P35/P3500 Van
1979 1984 For Chevrolet K10 Suburban
1975 1979 1985 For Chevrolet K20
1974 1978 1982 1986 For Chevrolet K20 Suburban
1978 1984 For Chevrolet K30
1974 For Chevrolet K30 Pickup
1979 For Chevrolet K5 Blazer 4.1l 5.0l 5.7l 6.6l
1973 For Chevrolet P10 Van 4.1l 5.0l 5.7l 7.4l
1979 1983 1988 For Chevrolet P20
1977 1981 1985 1993 For Chevrolet P30
1974 For Chevrolet P30 Van
1987 For Chevrolet R10 / V30 Gmc R1500 Suburban / R2500 Suburban / V1500
1990 For Chevrolet R1500 Suburban
1988 For Chevrolet R20 Suburban/ V20 Suburban Gmc R3500
1990 For Chevrolet R2500 Suburban 5.7l 6.2l 7.4l
1989 For Chevrolet V1500 Suburban /For Gmc V2500 Suburban
1973 1975 For Gmc C15 / C1500 Pickup 4.1l 4.8l 5.0l 5.7l 7.4l
1976 For GMC C15 Suburban / C35
1981 1985 For Gmc C1500
1983 For GMC C1500 Suburban
1977-1978 For Gmc C25 / K35
1977 For GMC C25 Suburban
1973 For GMC C25 /C2500 Pickup / K25 /K2500 Suburban
1981 1982 1986 For GMC C2500
1981 1985 For GMC C2500 Suburban
1979 1982 1986 For GMC C3500
1979 For GMC G2500
1976 1980 1986 1990 For GMC Jimmy
1975 For GMC K15 / K15 Suburban / K25 / K25 Suburban
1974 For GMC K15 /K1500 Pickup
1979 1982 1983 For Gmc K1500
1979 1983 For GMC K1500 Suburban/ K2500 / K2500 Suburban
1982 1986 For GMC K3500
1980 For GMC P1500 4.8l
1982 1989 For GMC P2500
1975 For GMC P35 4.8l 5.7l 7.4l
1983 1989 1993 For GMC P3500
1988 1989 For GMC V1500 Suburban

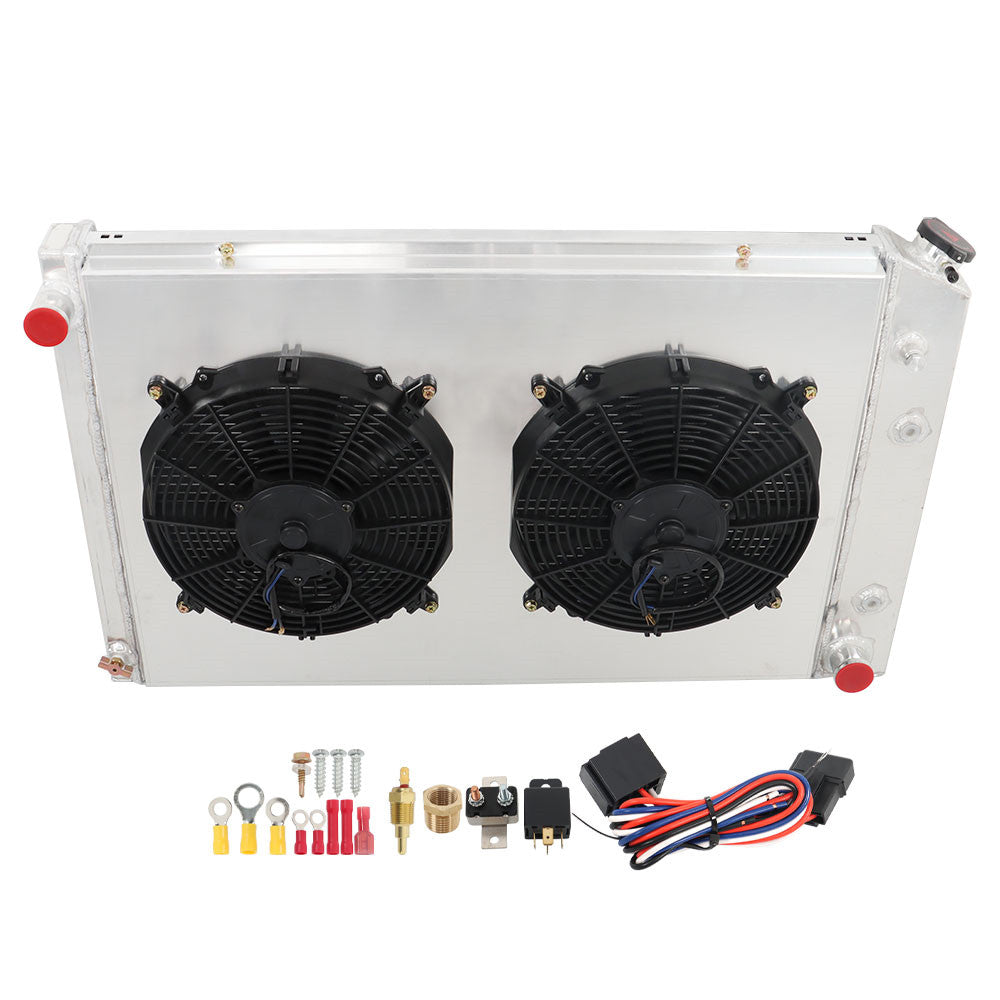

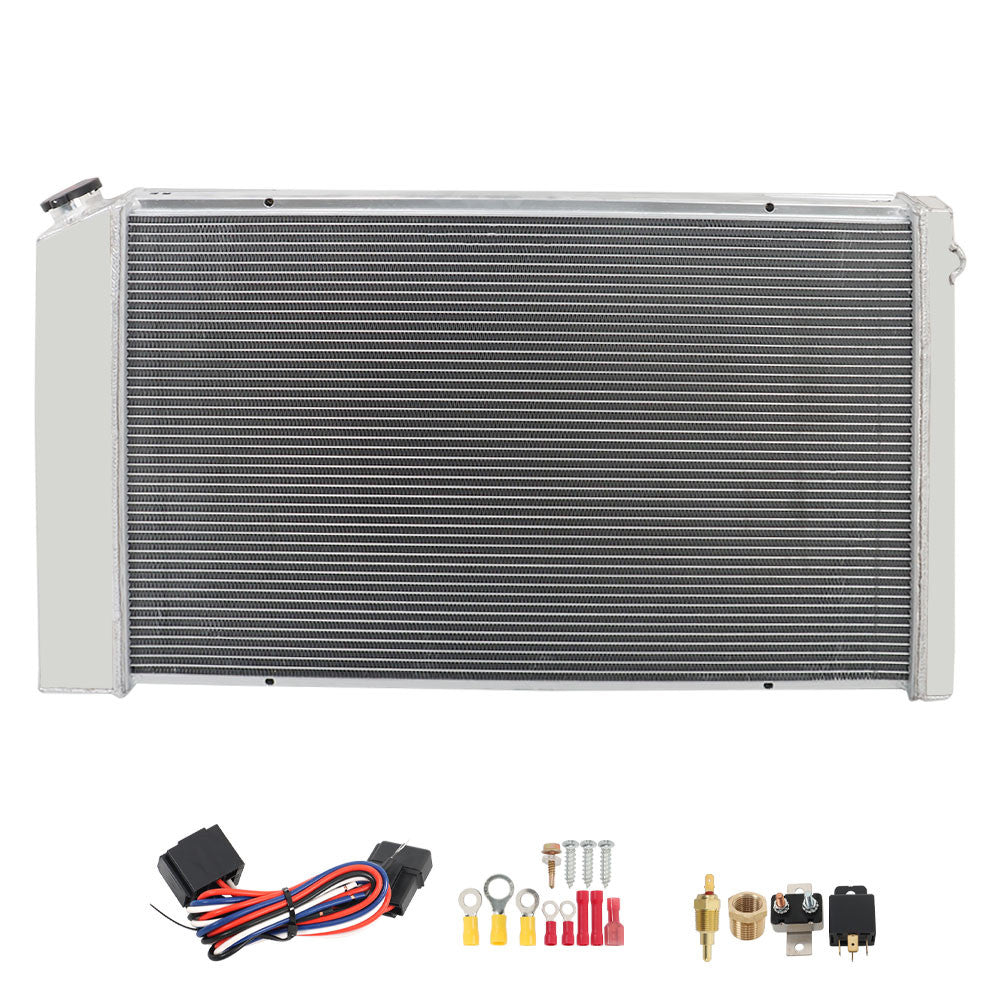

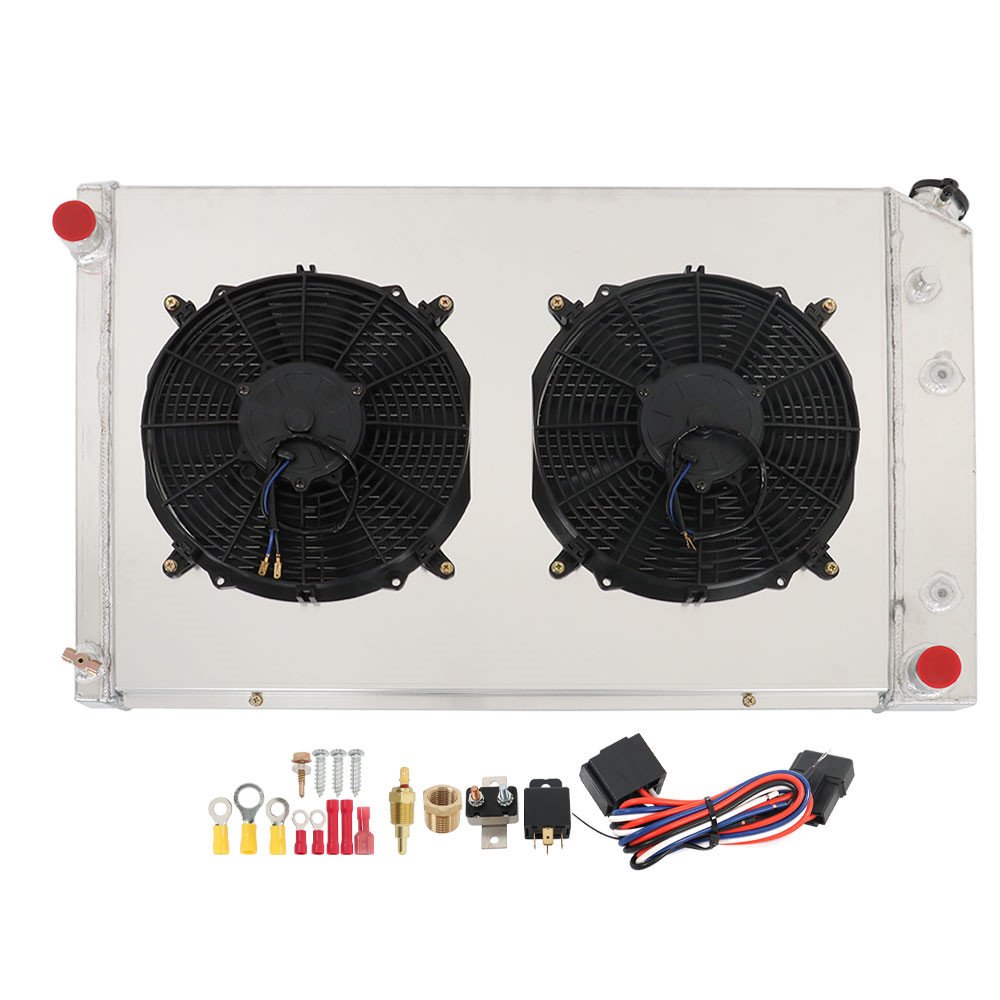

Package Includes：

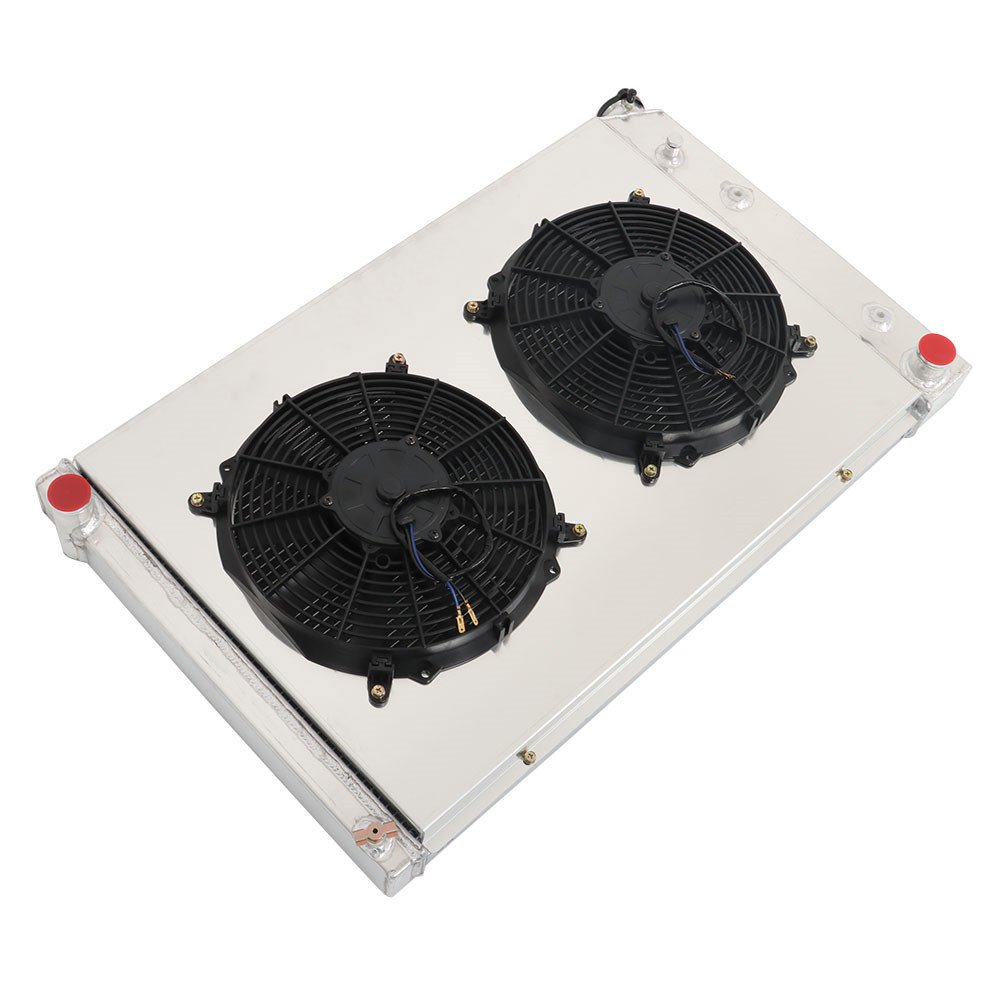

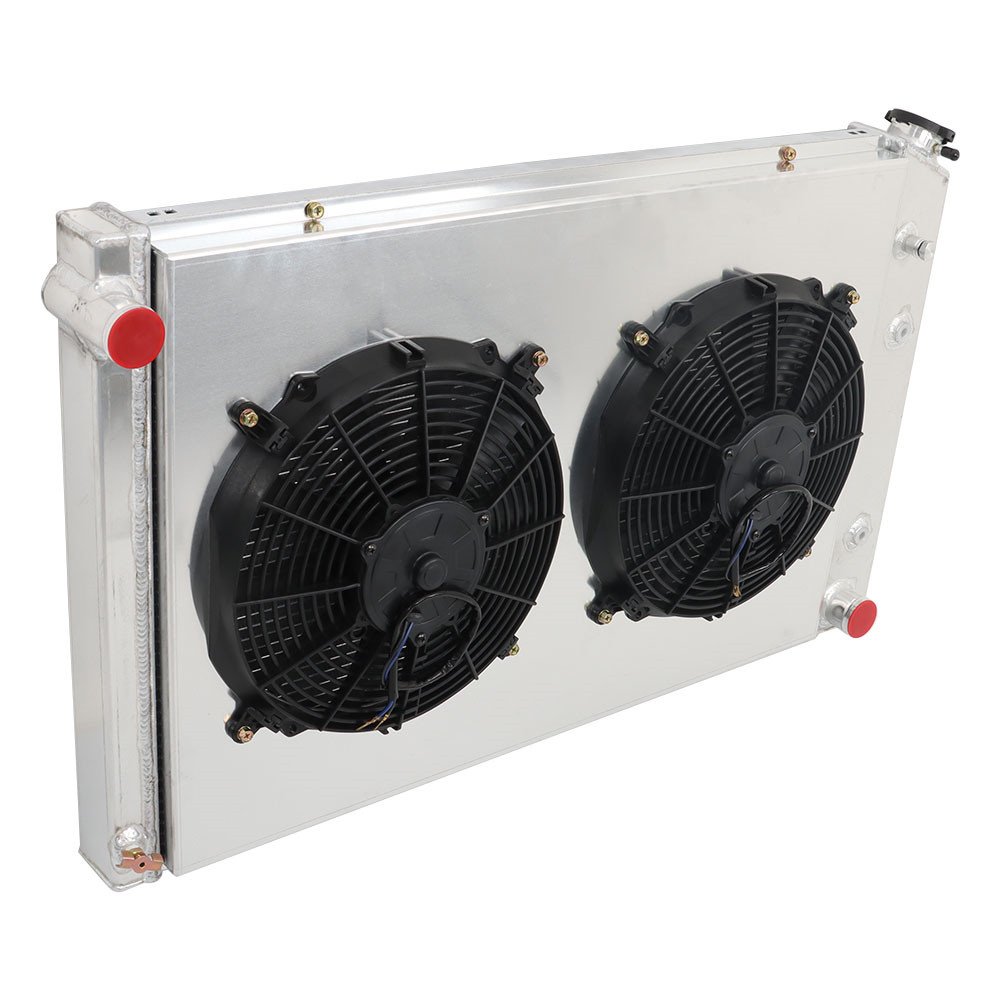

1* 3-Row Aluminum Radiator (Includes Radiator Cap)
1* Aluminum Shroud
2* 12" Fans (Includes mounting kits)
1* Thermostat Relay Kit
Just as pictures show
