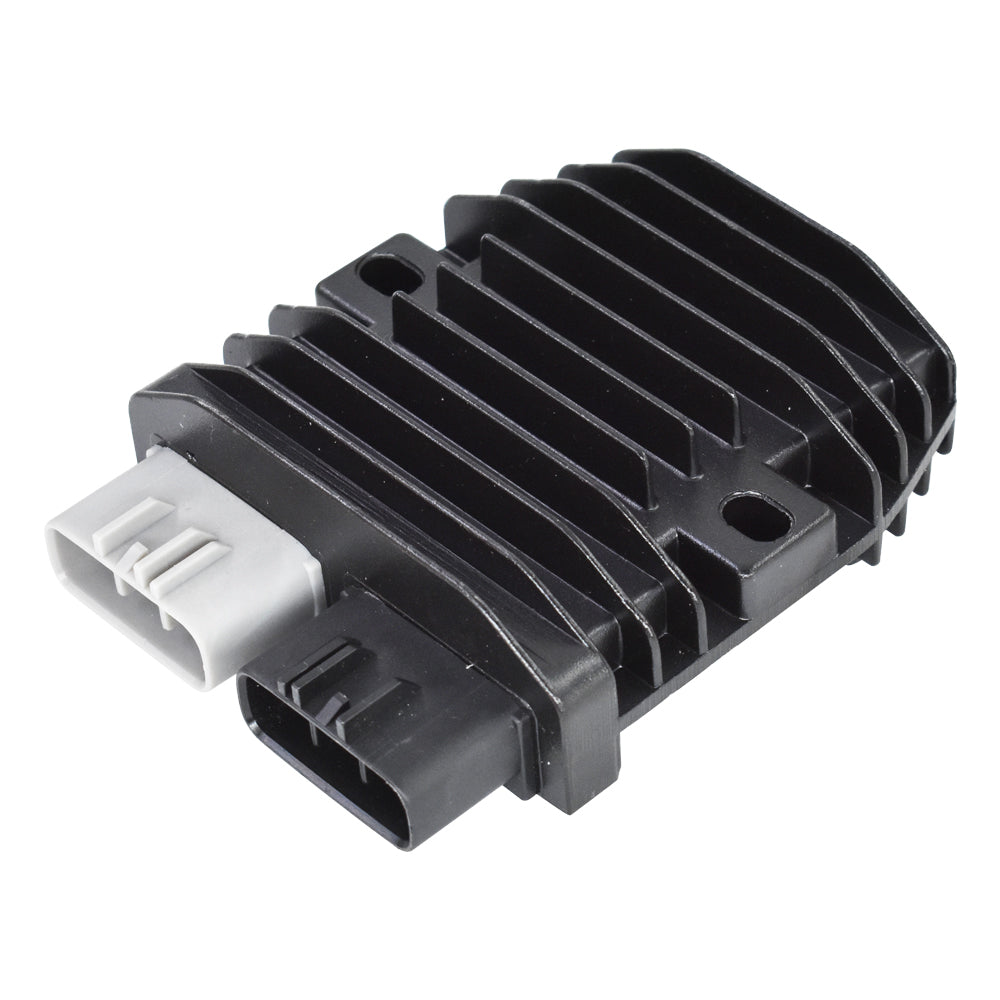

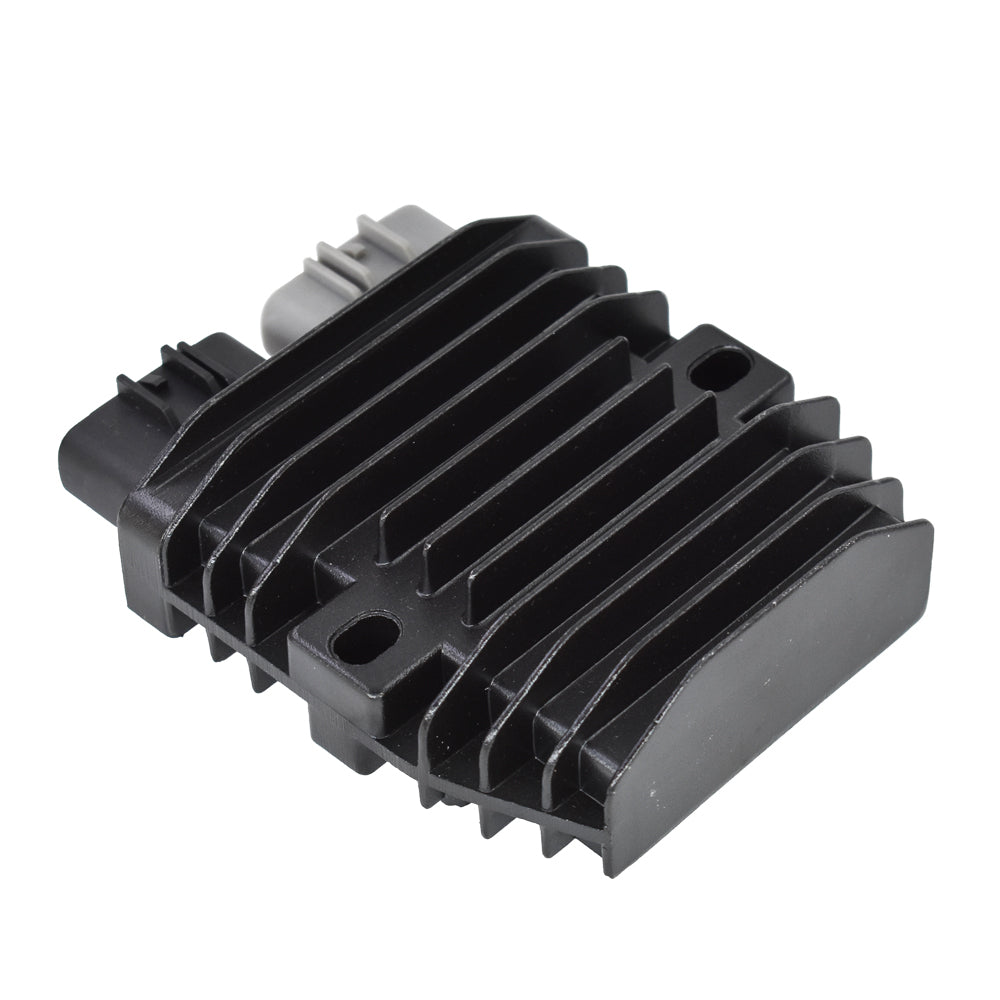

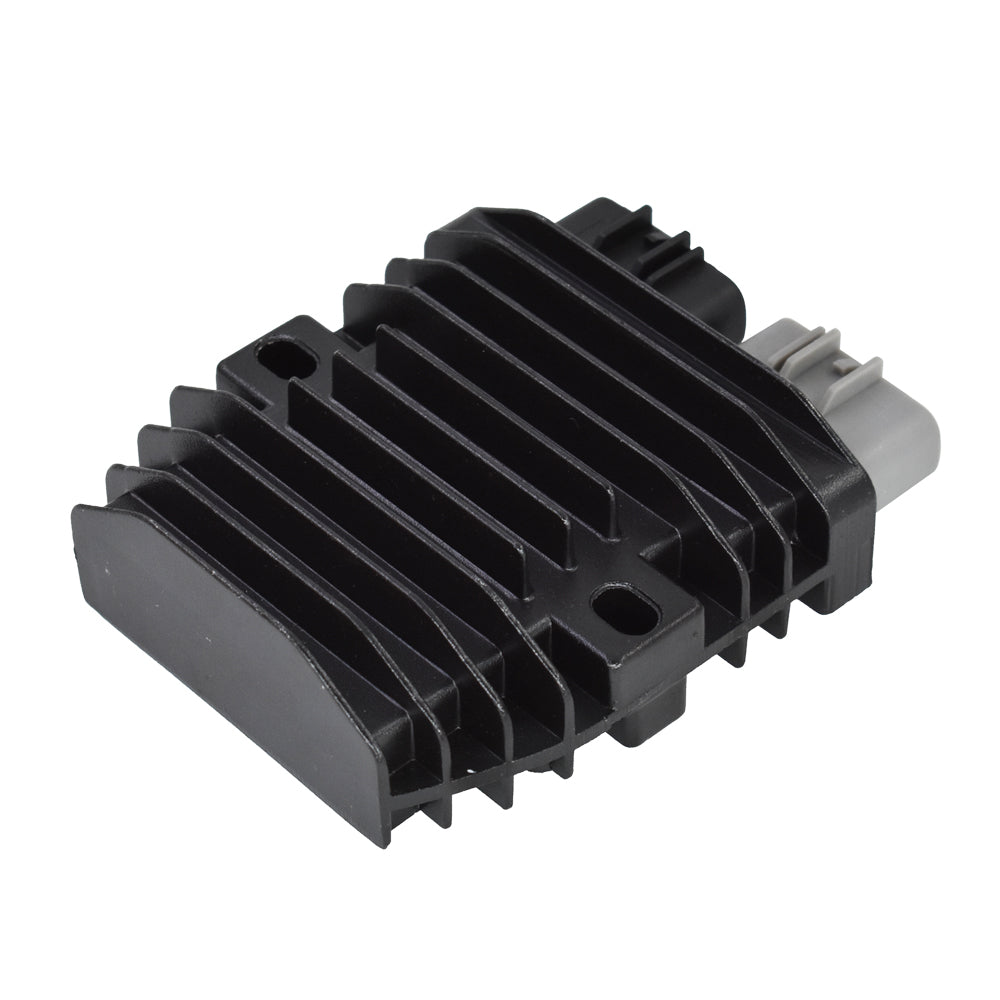

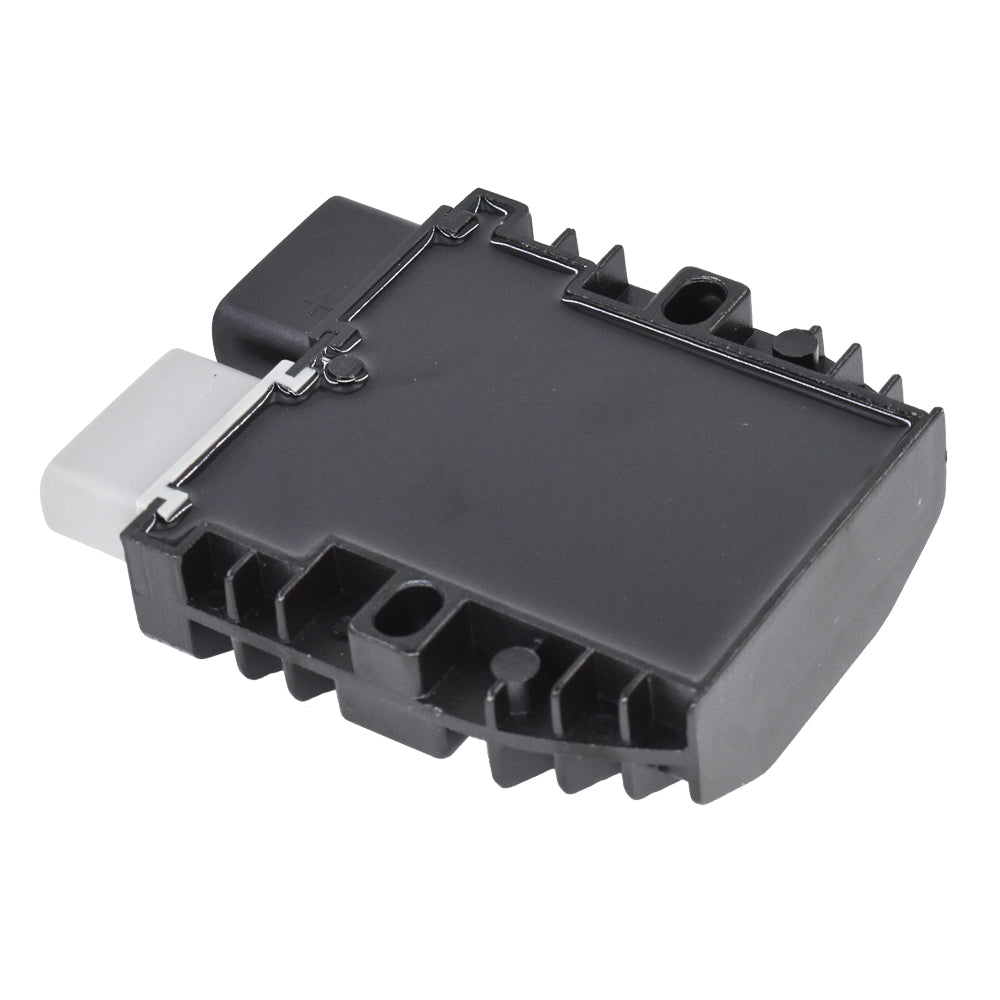

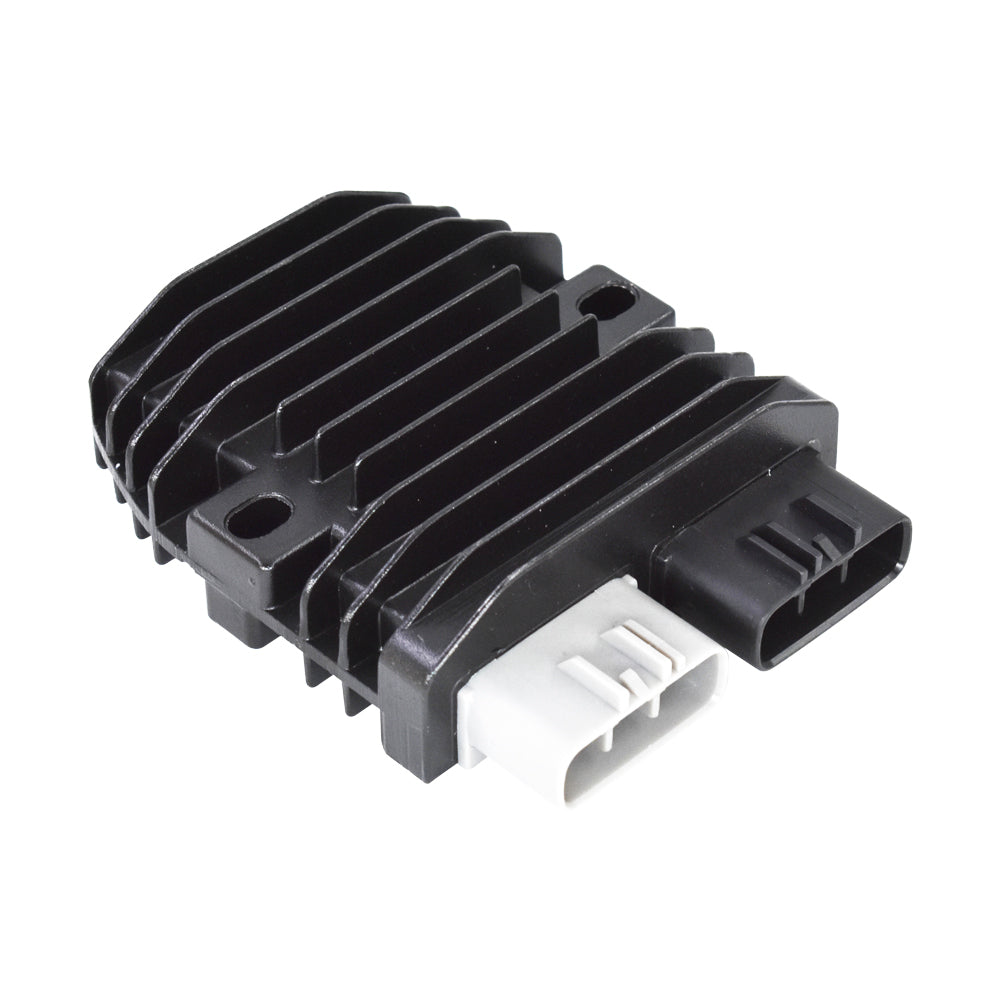

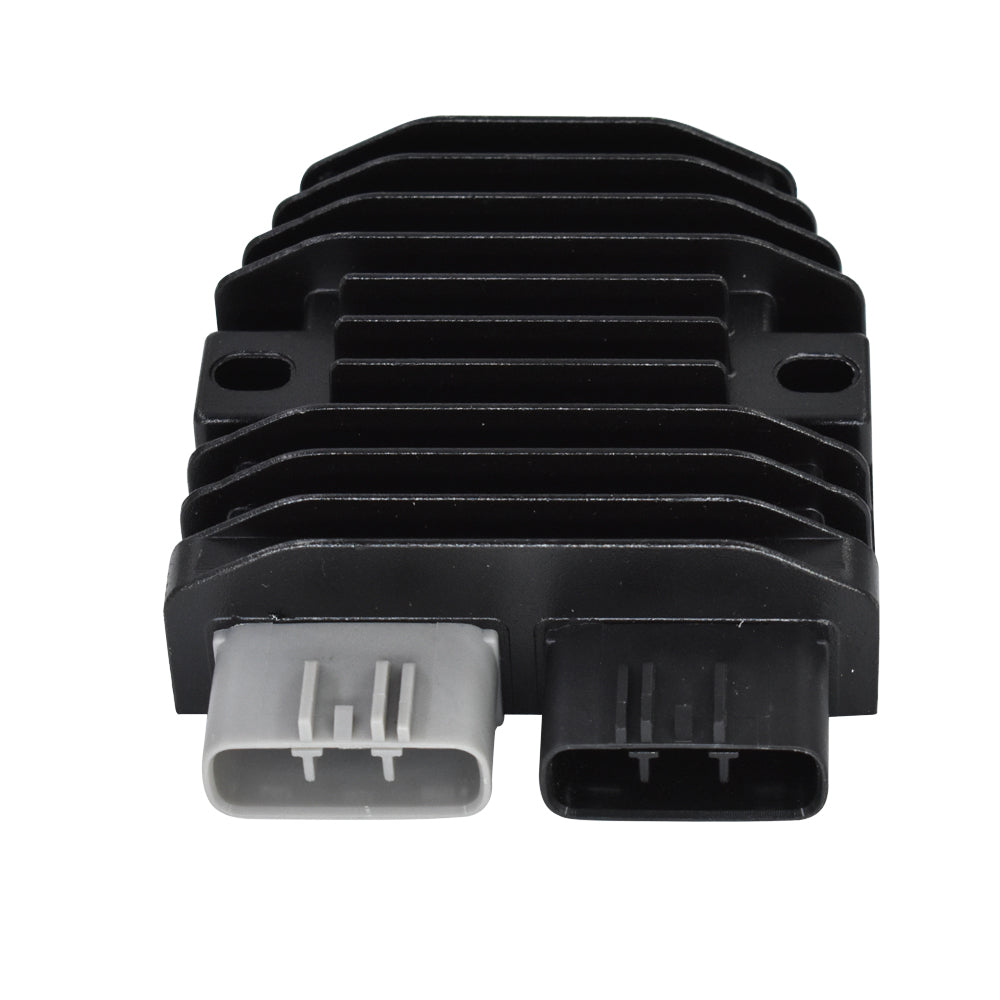

Labwork 31600-HP5-601 Voltage Regulator Rectifier for Honda Rancher 420 07-14
Free Shipping
Free shipping to the US for a limited time
Free Returns
30 days worry-free return.
Secure Payment
One year warranty
Key Features
-
Advanced Electrical Engineering: Fabricated with the highest grade lamination materials and upgraded electronic components to significantly improve charging capability and stabilize vehicle voltage.
-
Battery Overcharge Protection: Engineered to prevent battery overcharging, protecting your electrical system and extending the life of your battery.
-
Enhanced Heat Dissipation: Features an optimized heavy-duty heat sink design for superior cooling performance, reducing thermal stress under intense operational conditions.
-
Direct Plug-and-Play Installation: Designed to match factory mounting points and terminal orientations exactly, requiring no complex wiring modifications or cutting.
Crucial Fitment & Compatibility Notice
Please Read Before Purchasing: To avoid common electrical incompatibility and plug configuration mismatches, please strictly check your vehicle model, year, and specific sub-trim designation against our table below.
Official Application Matrix
| Make | Vehicle Model / Series | Compatible Years | Sub-Trim & Drivetrain Specifications |
| Honda | TRX420 Rancher (AT) | 2009–2014 | TRX420FA / TRX420FPA (Automatic Transmission) |
| Honda | TRX420 Rancher (ES) | 2007–2013 | TRX420FE / TRX420FPE (Electric Shift, 4WD) |
| Honda | TRX420 Rancher (Manual) | 2007–2013 | TRX420FM / TRX420FPM (Manual Shift, 4WD) |
| Honda | TRX420 Rancher (2WD) | 2007–2013 | TRX420TE / TRX420TM (2WD Models Only) |
| Honda | MUV700 Big Red | 2009–2013 | All Standard MUV700 UTV Series Models |
Strict Non-Compatibility Notice (Will NOT Fit):
-
Non-Honda Vehicles: Will NOT fit Yamaha, Polaris, Hisun, or other 700cc class UTV/ATV models.
-
Later TRX420 Models: Will NOT fit certain mid-generation facelifted 2015–2018 TRX420 models due to different plug wiring structures and computer programs.
-
Later MUV700 Models: Will NOT fit 2014 or newer MUV700 models.
Product Specifications
-
Part Name: Alternating Current Regulator Rectifier Assembly
-
Interchange Reference Numbers: 31600-HP5-601, SH753AA, AHA6094, 230-58036
-
Fitment Type: Direct Model-Specific Plug-and-Play
-
Condition: 100% Brand New
Package Includes
-
1 × Premium Replacement Regulator Rectifier Module
Important Mechanical & Installation Notes
-
Terminal Inspection: Before sliding the factory wire harness coupling into the new regulator, inspect your vehicle's male connector pins for corrosion or heat discoloration. Clean or replace damaged connectors to prevent circuit damage.
-
Apply Dielectric Grease: Applying a thin layer of specialized automotive dielectric grease inside the plug terminals is highly recommended to isolate moisture, dust, and electrical arcing.
-
Ground Verification: Ensure the metal chassis mounting surface is clean, rust-free, and securely fastened to provide a solid ground loop pathway for the heat-sink body.
